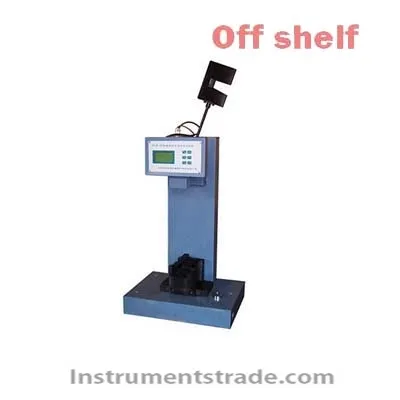

Brief introduction XCJD5 type digital Charpy impact testing machine with ISO179, GB / T1043, JB / T8762, suitable for hard plastics, fiber reinforced composite material, nylon, glass steel, ceramics, cast stone, asbestos board, electrical insulating materials and other nonmetallic materials impact toughness test, including machining sample and injection molded specimens, also for the notched and unnotched specimens. Is the chemical industry, scientific research institutions, tertiary institutions, quality testing department of the ideal test equipment. Features The machine adopts single chip microcomputer control, LCD Chinese display, the operation is flexible and convenient, the control precision is high. Automatic correction of energy loss caused by friction and windage, without modified by manual calculation. Direct display of the modified sample to absorb energy, improve the accuracy and efficiency of the test. Each test was done, and the impact energy was calculated automatically. After the experiment, the energy and the average energy of the sample are displayed. Technical Parameter Model: XCJD-5J Impact velocity: 2.9m / S Pendulum energy: 0.5J (optional), 1J (optional), 4J, 5J, 2J Blow center distance: 230mm Pendulum angle: 150° blade radius: R=2±0.5mm Jaw radius: R=1±0.1mm Impact blade angle :30±l° Energy display resolution: 0.01J The jaw support spacing (mm): 40, 60, 62, 70 Dimensions (mm): 260 x 630 x 420
Brief introduction
XCJD5 type digital Charpy impact testing machine with ISO179, GB / T1043, JB / T8762, suitable for hard plastics, fiber reinforced composite material, nylon, glass steel, ceramics, cast stone, asbestos board, electrical insulating materials and other nonmetallic materials impact toughness test, including machining sample and injection molded specimens, also for the notched and unnotched specimens. Is the chemical industry, scientific research institutions, tertiary institutions, quality testing department of the ideal test equipment.
