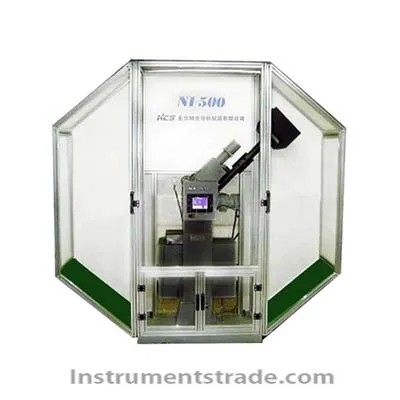

NI500 instrumented impact tester for Metal material quality inspection

Product ID:WSHcj002

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberNI500
    Brand NameYM
    Payment TermsT/T,paypal
    Brief introduction:
    The fuselage use cast steel moulds; Using automatic operation, digital display, the operator through touch control buttons, monitoring data through the acquisition system, through the energy sensor signals to the computer; Equipped with high resolution power sensor; Hanging pendulum system USES a cushioning design reduce the hammer body in the body joint friction; Different jaw design can satisfy all kinds of test standard such as: xabi and airy method; Jaw span does not change during the testing process. To avoid the under the impact of the high-energy sample distortion; According to the test standard change knife edge, can meet the national standard, American standard, test standard, etc.
    Features:
    1. The full digital control
    2. Test material absorption maximum power
    3. Meet GB229, GB/T19478-2005, ASTM electronics, ISO14556 K1d value KJ1d,
    Fully reflects the material fracture process, material fracture curve drawing.
    4. At the same time can make impact tensile and impact bending tests.
    5. Meet the charpy, airy, and other methods
    6. Test report can be edited through the printed word, excel format.
    Technical indicators:
    Specifications: NI500
    The biggest impact energy: 500 J
    Pendulum early elevation: 150 °
    Impact velocity: 5 ~ 5.5 m/s
    Sample bearing span: 40 mm
    Sample pedestal bearing surface inclination: ° 11 + 1 °
    Impact knife arc radius: R 2 ~ 2.5 mm
    Resolution: 0.1 J
    Resolution: 0.06 °
    Impact knife Angle: ° to 30 ° + 1
    Impact blade thickness: 18 mm
    Sample size: 55 mm x 10 mm x 10 mm (7.5 mm, 5 mm)
    Machine appearance size: 2140 mm * 820 mm * 1950 mm
    Testing machine net weight: about 1100 kg
    The sensor precision: acuities were 1% FS
    The sensor range: 40 kN
    Response frequency, 100 kHz or higher
    The host power supply: 380 V + 10%, 50 Hz (ac three-phase five line)
