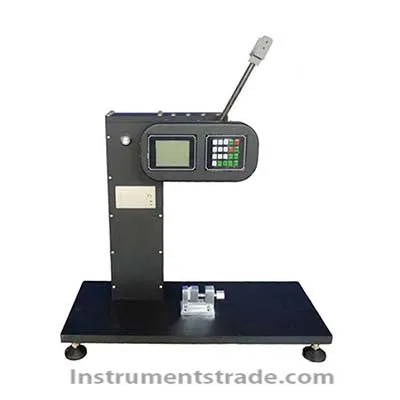

Brief introduction: TY - 4021, cantilever beam impact testing machine is used to measure plastic, reinforced nylon, glass steel, ceramics, cast stone, plastic electric appliances, insulation materials etc. The impact toughness of non-metallic materials. Is a scientific research units, colleges and universities, non-metallic materials manufacturers on the quality inspection of commonly used equipment, this machine is a kind of simple structure, convenient operation, high testing precision of the instrument. The machine is in line with the GB/T1843 "plastic cantilever beam impact test method and ISO180, GB/T2611, JB/T8761 standards requirements. Digital display type impact testing machine with high precision encoders technology, with high precision, good stability and large measurement range etc, digital measurement shows that the impact strength and average energy loss automatic correction, print test reports, and other functions. Technical parameters: The impact speed: 3.5 m/s; Pendulum energy: (D) 5.5, 2.75, 5.5 J, J J J, 22 (22 D) 11 Pendulum Yang Angle: 150 Pendulum impact center to edge distance: 335 mm Impact on the blade to jaw plane distance: 22 mm The blade radius: R = 0.8 mm Conform to the sample type GB1843-80 and ISO180-82 Configuration list
Brief introduction: TY - 4021, cantilever beam impact testing machine is used to measure plastic, reinforced nylon, glass steel, ceramics, cast stone, plastic electric appliances, insulation materials etc. The impact toughness of non-metallic materials. Is a scientific research units, colleges and universities, non-metallic materials manufacturers on the quality inspection of commonly used equipment, this machine is a kind of simple structure, convenient operation, high testing precision of the instrument.
