Brief introduction:

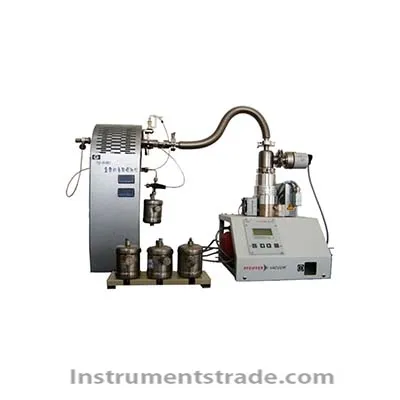

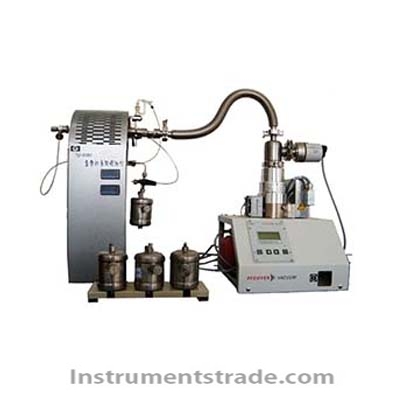

TP - 5080 automatic multi-purpose adsorption instrument is automatic, intelligent, portable dynamic analyzer, into one of the catalysts can be pressurized (5 Mpa), atmospheric pressure, are temperature (0 oc and 1000 oc), negative temperature (- 120 oc to 0 oc) conditions by temperature programmed reduction (TPR), temperature programmed oxidation (TPO), temperature programmed stripping titration (TPD), hydrogen - oxygen (HOT) and temperature programmed surface reaction (TPSR), and other series of experimental study on the catalyst surface properties. The analyzer is a fully automated instrument operation, can complete trace of two kinds of continuous flow method and the method of pulse response, equipped with a special data processing system. The analyzer is widely applied in mineral composition analysis, hydrogen storage, oxygen storage material performance testing, as well as the material of organic/inorganic gases, liquids selective adsorption study, universities and research institutes of choice for teaching and research equipment. Features:
1. Automatic, sample loading after just start the program
2. The piping system and valves consist of zero adsorption, corrosion resistance, insulation materials
3. Suitable for a variety of gas adsorption mass (H2, CO, CO2, NH3, H2S, SO2, etc.), liquid adsorption mass (benzene, toluene, arsenic blocks, etc.) can be equipped with evaporation tank
4. Equipped with vacuum system; Connection mass spectrometry, chromatography and infrared spectrum can be obtained at the same time method, chromatography and chemical method
5. Air consumption and power consumption are respectively the 1/3 and 1/2 of the same instrument Technical indicators:
Catalyst sample loading quantity: 0-200 mg (applicable to granular, powder catalyst)
Process heating rate: the design value of 0.5-90 oc, min - 1 (nine section temperature programmed with independent PID parameter self-tuning, temperature control precision is + / - 0.2% FS)
Adsorption of furnace temperature: room temperature - 1100 oc (above 1000 oc use short)
The time needed to stabilize the boot after instrument: 20 min
