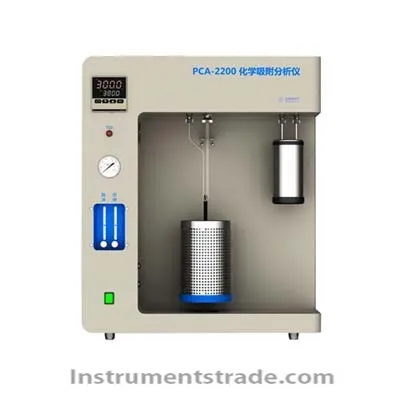

PCA-2200 chemisorption analyzer for Catalyst performance evaluation

Product ID：WBhxxf002

Price: Please inquire PDF Format

Supply Ability:20SETS/MON

Port:SHENZHEN

Product Introduction
Consulting

Model NumberPCA-2200
Brand NameYM
Payment TermsT/T, paypal

Brief introduction
PCA-1200 chemisorption analyzer with full catalyst in situ characterization of performance, catalysts and other functional materials, surface metal dispersion , active metal area , acid ( base ) of the center of the number of acid ( base ) and other performance proceeds from a comprehensive evaluation
Features
1.VICI two six-way valve , and the dispersion of the metal area determination for pulse titration analysis
2. The original four-arm PT gilded TCD detector , with a strong antioxidant and corrosion resistance to ammonia , stable current control ensures baseline stability and reproducibility of the test
3.TCD adjustable polarity test
4. The selection of digital mass flow meter
( 1 ) high control accuracy
( 2 ) long life
( 3 ) automation software control
5. The original U-shaped reactor Shiying Qi Lu
( 1 ) can be fully preheated reaction gas
( 2 ) Built-in thermocouples can be accurately obtained bed temperature
( 3 ) spillway design for various sizes of particles and powders
6. Configure high precision combustible gas warning device to increase the safety level laboratories
7. The software provides a visual indication of each operation flow , the interface can display the time , temperature and the signal output , to realize real-time monitoring of the reaction ; provide peak selection , editing , integration and data smoothing , and can manually annotate data , data can be imported EXCEL or WORD, PNG , etc.
8. Can be connected to a mass spectrometer , chromatography, infrared or other detectors
9. Temperature control of advanced intelligent software control system of choice
Technical parameters
Analysis: continuous flow method
Test function : TPD, TPR, TPO, TPS, metal dispersion , active surface area , pH, number of acid sites , storage of oxygen , pulse titration test surface area
Intake port number :
1. The inlet manifold : 6 ( expandable to 10 , multiple carrier gas , multiple reaction gas ; mixer built-in)
2. Liquid Entrance : 1 ( optional steam generator )
Test gas:
1. Carrier gas : N2, Ar, He, H2 , etc.
2. Reaction gas : H2, O2, CO, NO, SO2, NH3, H2S , etc.
