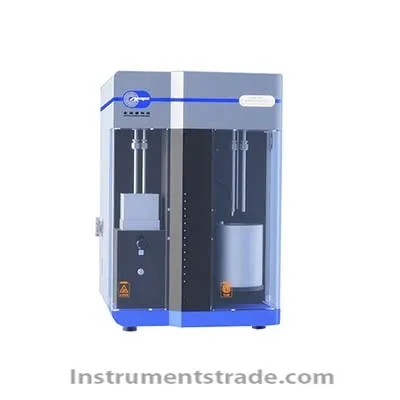

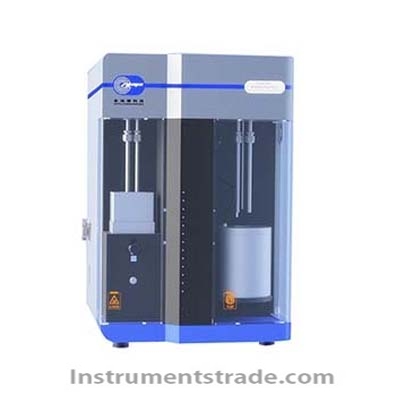

H - Sorb2600 high temperature gas adsorption instrument for Microporous Materials

Product ID：WBhxxf004

Price: Please inquire PDF Format

Supply Ability:20SETS/MON

Port:SHENZHEN

Product Introduction
Consulting

Model NumberH - Sorb2600
Brand NameYM
Payment TermsT/T, paypal

Introduction
H Sorb 2600 automatic high pressure gas adsorption apparatus with capacity method for atmospheric pressure to 200 bar pressure range and stripping and continuous adsorption!Gold el spectrum automatic gas adsorption instrument testing of high efficiency, high pressure volumetric method at the same time for 2 samples and 2 samples of degassing treatment!
Feature
Control system : imported VCR interface high pressure pneumatic valve , automatic on-off control within 200Bar pressure range , sealing performance up 1x10-10Pa.m3 / s, the service life of 500 million times ; programmable controller system , high integration and anti-jamming capability , improve the instrument stability and service life ;
Test control : set by the test software interface-related parameters, to achieve a fully automated unattended operation type , enabling automatic test at night ; H-Sorb model can accurately control the inflation pressure points needed to obtain the desired data point ;
Pipeline system : Imported 316L stainless steel thick-walled pipe , the main line of micro- welding process sealed connection , which can effectively reduce the dead space volume , improve test accuracy ; Full Metal VCR connection , enabling secure , reliable, easy to install or remove the pipeline fast connection ;
Safety measures: the original H-Sorb mode progressive inflation and exhaust technology, automation inflatable and exhaust , safe and reliable , eliminating the risk of human action may bring the high-pressure gas , and reduce the impact of a large pressure differential sensor the possible harm .
Technical parameter
Test method: static volumetric method , temperature and high pressure gas adsorption
Host function : room temperature to 500 ℃ temperature range of optional arbitrary adsorption and desorption isotherms measured supercritical assay Gibbs
Data processing : Langmuir regression isotherms , Langmuir maximum adsorption constants L and adsorption pressure constant B parameter determination ;
Langmuir correction model Loading-ratio Correlation (LCR) isotherm return ;
Ono-Kondo (OK) Lattice lattice model isotherms return ;
software integration of different pressures and different temperatures , commonly adsorbed gas density and high precision computing capabilities Liquid Equilibrium
Ultimate vacuum : 4x10-2Pa (3x10-4Torr), molecular pump system (1x10-6Pa) Optional
Test gas: high-purity N2, CO2, (99.999%) or other ( e.g. on-demand selection Ar, Kr, H2, CH4 , etc. )
Data collection: high-precision and high integration of data acquisition module, the error is small , anti-interference ability
Instrument Specifications : Dimensions Length Width 70 × 70 × height 85 (CM);
Weight: 60 kg ; Voltage : AC 220V; current: 5A
