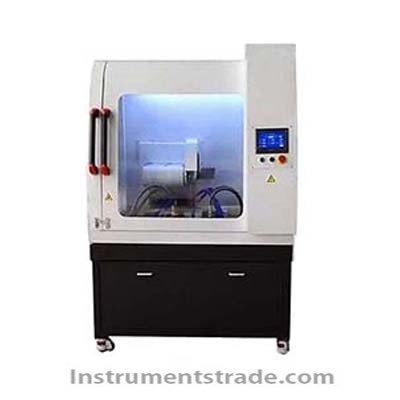

ZY-200 automatic rail cutting machine Introduction: ZY-200 is a floor-standing straight-cut automatic rail cutting machine. It is suitable for cutting rails with high precision requirements. The cutting surface is smooth and has no burns, and it has no offset and can be perfectly matched with other root rails. This machine is easy to operate and can be easily used by beginners even in a short time. Features: 1. Easy and fast cutting of hard rails 2. Intuitive touch screen panel, friendly interface 3. Mitsubishi PLC control system, ABB motor 4. Large thrust double hydraulic clamping tooling (clamping force >1000Kgf) 5. 150L large capacity circulating cooling water tank with magnetic separation system 6. Large and transparent cutting room for easy rail placement 7. Cutting indoor lighting 8. Emergency stop button Technical Parameters: Control method: color touch screen, PLC control system (Mitsubishi, Japan) Body form: Floor type automatic straight cut Cutting capacity: ≤75X75mm (rail section) Effective feed depth (mm): 100 Cutting table size: 900X450mm Cutting sheet specifications: (350-400) X (2.5-3) X32mm Motor power: 7.5KW (ABB motor) Clamping method: Hydraulic clamping Cooling water tank capacity: 150L Feed speed range: 1-100mm/min Cutting progress tracking: synchronous display Cutting method: automatic Cutting repair: automatic Online speed regulation: 1-100mm/min (arbitrary adjustment) Reset method: automatic reset Spindle speed: 100-3000r/min Exhaust control: automatic control Lighting system: 24V (LED cold light source) Power: 380V Dimensions (mm): 1300X1200X1900 Weight (kG) : 1500
Introduction: ZY-200 is a floor-standing straight-cut automatic rail cutting machine. It is suitable for cutting rails with high precision requirements. The cutting surface is smooth and has no burns, and it has no offset and can be perfectly matched with other root rails. This machine is easy to operate and can be easily used by beginners even in a short time.
