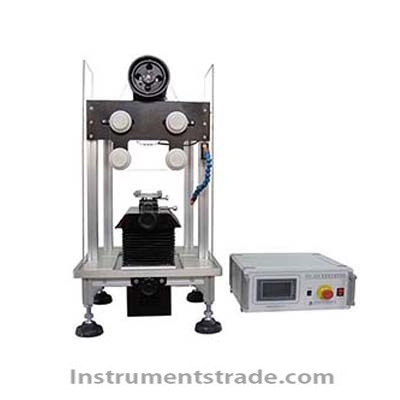

Introduction STX – 202A small diamond wire cutting machine is specially designed for material researchers, used for precision cutting of brittle material samples. Such as crystal, ceramic, glass, metal, plastic, PCB, sample, sample ore, refractory materials, building materials, dental materials, biological and biomimetic composite materials, etc. When using the ultra-thin precision cutting, cutting the chips can achieve 0.08 mm thick. Native compared with STX - 202, the Y axis is controlled by manual micrometer feed way to improve the way of feed for stepper motor control, made cutting control more convenient and quick. The main features
1, can be used for cutting of all sorts of different hardness material, especially suitable for brittle crystal cut, easy to cleavage.
2, easy operation, excellent processing quality.
3, USES the aluminum structure, beautiful light. Technical parameters
1, the power supply voltage: 220 v, 50 hz
2, spindle speed: 2-260 - RPM is adjustable
3, cutting line length: 20 m
And the distance between two guide wheel inside: 100 mm
5, Y axis stroke: ≤50mm
6, Z axis stroke: ≤60mm
7, two-dimensional jig: level 0-360 ° rotating, plus or minus 15 ° around Angle
8, slide board size: 80 mm x 51 mm
9, the cutting depth: ≤50mm 10, cutting the details size: diameter 50 mm x 50 mm Product specification
Size: 414 mm * 500 mm * 750 mm
Weight: 40 kg Standard accessories
1, the tension wheel
2, guide wheel,
3, cross jig
4, diamond wire
5, water pump
6, resin ceramic block
7, paraffin wax rod Optional accessories
1, diamond wire (diameter 0.14 mm, 0.2 mm and 0.3 mm,0.4 mm)
2, cooling oil
