Model NumberSYJ - 200

Brand NameYIMA

Payment TermsT/T, paypal

Introduction

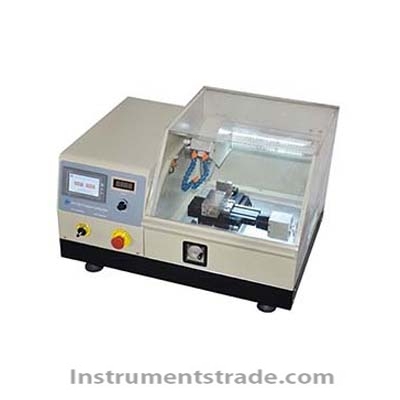

SYJ-200 is a CE certified automatic diamond saw for precisely cut of all type of materials. The saw is equipped with 8" diameter diamond blade and touch-push panel to achieve automatic control. It is the perfect cutting tool for metallurgical, ceramic and materials research laboratories
Technical parameters

Voltage and Power:208V-240VAC, 600W   50/60Hz

If you try to use at 110VAC, please order a 1000W transformer 110V-220V separately

Motor & Spindle:

1 HP high torque DC motor.
1" dia spindle and 2" flange to accept 6 - 8" dia diamond blade.
Variable blade speed: 300-3500 RPM with screen touch control panel and digital display

Sample Stage & Controller:

Quick clamp is included to make sample mount easy and fast. (click picture below-lefy)
Automatic/manual control X and Y two axial motion via touch screen digitital panel ( click picture below right)
Programmable Y and X axis advancement via LCD panel to achieve automatic cutting with 0.01 mm precision.
X axis is for cutting feed which has Max. travel distance of 80 mm and adjustable speed from 1.0 mm/ minute to 20 mm/minutes.
Max. cutting deepth ( or sample height ) 65mm
Y axis is for controlling thickness of slices, which can be programmed up to 100 mm distance
Max. Opening of the Vice: 54mm

Cutting Blade:

Three 8" cutting blades are included and completed accessaories are included for immediate use
One 8" diameter x 0.025" thickness x 1" arbor sintered diamond blade for cutting ceramic sample
One 8" Dia x 0.04" t x1.26" arbor SiC Blade for cutting non-ferous metal for cutting non-ferrou metal, Ti, Ni Ta
one 8" Dia x 0.04" t x1.26" arbor Alumina Blade for cutting ferous metal for cutting steel etc

Water Cooling:

Adjustable nozzles is installed for re-circulating coolant
Protective splash cover with elec cooling duringtronic safety interlock installed
Click the picture below to order an optional 6L coolant circulating tank which perfectly connects to SYJ-200.

Dimensions: Overall dimensions: 734mm x540mm x475mm.
Shipping Weight: Shipping weight: 365 lbs.
Warranty & Compliance: 1 Years Limited Warranty with life time support (not include the rusty part due to improper storage)

Certification: CE certified
