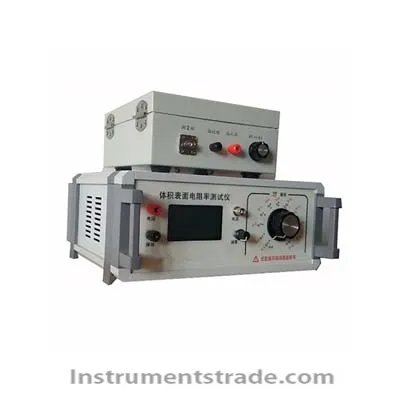

Introduction: In full compliance with the national standard GB1410-2006 solid electrical insulation materials insulation resistance, volume resistivity and surface resistance test methods, ASTM D257 insulating materials DC resistance or conductivity test methods and other standards. The instrument with different measuring electrodes (fixtures) can measure the volume resistivity and surface resistivity or conductivity of different materials (solid, powder or liquid). Suitable for rubber, plastic, film, and powder, liquid, and solid and paste shapes of various insulating material volume and surface resistance value determination. In addition to measuring the resistance of the instrument, but also direct measurement of weak current. Technical Parameters: Resistance measurement range: 1 × 104Ω ~ 1 × 1018 Ω Current measurement range: 2 × 10-4A ~ 1 × 10-16A Display: digital LCD display Built-in test voltage: 10V, 50V, 100V, 250,500,1000 V (arbitrary switching) Basic accuracy: 1% (* Note) Use of the environment: Temperature: 0 ℃ ~ 40 ℃, relative humidity <80% Power supply form: AC 220V, 50HZ, power consumption about 5W Instrument size: 285mm × 245mm × 120mm Instrument quality: about 5KG
Introduction: In full compliance with the national standard GB1410-2006 solid electrical insulation materials insulation resistance, volume resistivity and surface resistance test methods, ASTM D257 insulating materials DC resistance or conductivity test methods and other standards. The instrument with different measuring electrodes (fixtures) can measure the volume resistivity and surface resistivity or conductivity of different materials (solid, powder or liquid). Suitable for rubber, plastic, film, and powder, liquid, and solid and paste shapes of various insulating material volume and surface resistance value determination. In addition to measuring the resistance of the instrument, but also direct measurement of weak current.
