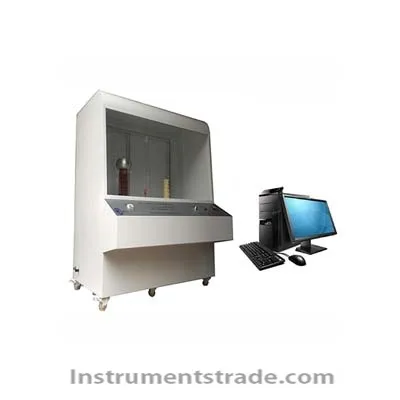

Introduction: ZJC-100KV voltage breakdown tester is a computer-controlled, through our company independently developed a new intelligent digital integrated circuit system and software control system to complete the two parts, the boost rate is truly uniform, accurate, and can accurately measure Leakage current data. Test curve can be drawn in real time, showing the test data to determine the accuracy, and can save, analyze, print test data. Mainly used in solid insulating materials (such as: plastic, rubber, film, resin, mica, ceramic, glass, insulating paint and other media) in the power frequency voltage or DC voltage breakdown strength and withstand voltage test. Features: 1, run under WIN XP / WIN7 / WIN8 system independent installation software, friendly interface, easy to operate 2, the experiment shows the curve, the data is automatically stored, automatically find 3, a variety of purposes can be submitted, DC test test is accurate, reliable and safe 4, the computer control test process, automatically determine the stop, automatic reset 5, over-voltage, over-current, short circuit, leakage, misuse and other protection Technical Parameters: Input voltage: 220 V AC Output voltage: AC 0--100 KV; DC 0-100 KV Electrical capacity: 10KVA High pressure classification: 0-10KV, 0--50KV, 0-100KV Boost rate: 100V / S 200V / S 500V / S 1000V / S 2000V / S 5000V / S, etc. Test method: DC test: 1, uniform boost 2, step-up gradient 3, pressure test AC test: 1, uniform boost 2, step-up 3, pressure test Test medium: air, test oil Voltage test accuracy: ≤ 3-5% Test voltage continuously adjustable: 0-100 KV
Introduction: ZJC-100KV voltage breakdown tester is a computer-controlled, through our company independently developed a new intelligent digital integrated circuit system and software control system to complete the two parts, the boost rate is truly uniform, accurate, and can accurately measure Leakage current data. Test curve can be drawn in real time, showing the test data to determine the accuracy, and can save, analyze, print test data. Mainly used in solid insulating materials (such as: plastic, rubber, film, resin, mica, ceramic, glass, insulating paint and other media) in the power frequency voltage or DC voltage breakdown strength and withstand voltage test.
