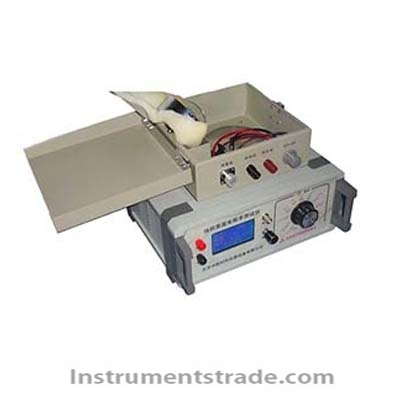

Introduction: The instrument can measure both high resistance and micro current. The large-scale integrated circuit of American In Company is adopted, which makes the instrument small in size, light in weight and high in accuracy. The digital liquid crystal directly displays the resistance value and current. The measurement range is from 1×104Ω to 1×1018 Ω. It is a digital ultra-high resistance measuring instrument with a wide measuring range and high accuracy. The current measurement range is 2×10-4 to 1×10-16A. The internal test voltage is 10V/50V/100V/250V/500V/1000V. The instrument has high precision, fast display, good stability and convenient reading. It is suitable for the volume and surface resistance of various insulating materials in the shape of rubber, plastic, film, carpet, fabric and powder, liquid, and solid and paste. Determination. Features: 1. Resistance measurement range is wide 1×104Ω～1×1018Ω 2. Current measurement range is 2×10-4A～1×10-16A 3. Small size, light weight and high accuracy 4. Resistance, current dual display 5. Good performance and stable reading 6. All test voltages (10V/50V/100/250/500/1000V) The resistance results are directly read during the test, eliminating the inconvenience of using the old high-impedance meter to multiply the coefficient at different test voltages or different ranges. Making the measurement of ultra-high resistance is as simple as measuring a common resistance with a multimeter. Can measure ultra high resistance and micro current Technical Parameters: 1. Resistance measurement range: 0.01×104Ω～1×1018Ω. 2. The current measurement range is: 2×10-4A～1×10-16A 3, display mode: digital LCD display 4, built-in test voltage: 10V, 50V, 100V, 250, 500, 1000V 5. Basic accuracy: 1% (*Note) 6, the use of the environment: Temperature: 0 ° C ~ 40 ° C, relative humidity <80% 7, the test voltage inside the machine: 10V/50V/100/250/500/1000V arbitrary switching 8, power supply form: AC 220V, 50HZ, power consumption of about 5W 9, instrument size: 285mm × 245mm × 120 mm 10, quality: about 5KG
Introduction: The instrument can measure both high resistance and micro current. The large-scale integrated circuit of American In Company is adopted, which makes the instrument small in size, light in weight and high in accuracy. The digital liquid crystal directly displays the resistance value and current. The measurement range is from 1×104Ω to 1×1018 Ω. It is a digital ultra-high resistance measuring instrument with a wide measuring range and high accuracy. The current measurement range is 2×10-4 to 1×10-16A. The internal test voltage is 10V/50V/100V/250V/500V/1000V. The instrument has high precision, fast display, good stability and convenient reading. It is suitable for the volume and surface resistance of various insulating materials in the shape of rubber, plastic, film, carpet, fabric and powder, liquid, and solid and paste. Determination.
