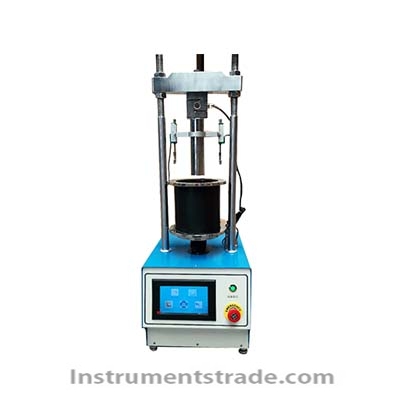

YYW-IV strain gauge unconfined pressure gauge Introduction: Used to determine the axial compression force exerted on soft clay with high saturation under unrestricted lateral conditions until the specimen is damaged, and to obtain the unconfined compressive strength of the soil. Adopting microcomputer touch screen control, screw drive, with curve display, and a printer to directly print test data. Widely used in various physical and mechanical property tests such as non-metallic materials. Mechanical performance tests can also be conducted on other components. characteristic: 1. 7-inch color touch screen display, with curve display, data saving and printing. 2. Simultaneously support two international standards and domestic standards 3. The deformation recording points and loading speed of the experiment can be set arbitrarily to meet the needs of different testing standards. 4. It has data processing capabilities and can automatically calculate CBR values. 5. Servo motor control with software speed feedback and infinite adjustment of loading speed. 6. Built in micro printer that can print data stream lists and test results. 7. Data can be uploaded (optional). Technical parameters: Maximum test force: 10KN Test speed: 1-10mm/min. It can be set by oneself. Displacement sensor: 0-25mm division value: 0.001mm linearity: 0.3%. Dimensions: 600 * 450 * 850mm Power supply voltage: 220V.
Introduction: Used to determine the axial compression force exerted on soft clay with high saturation under unrestricted lateral conditions until the specimen is damaged, and to obtain the unconfined compressive strength of the soil. Adopting microcomputer touch screen control, screw drive, with curve display, and a printer to directly print test data. Widely used in various physical and mechanical property tests such as non-metallic materials. Mechanical performance tests can also be conducted on other components.
