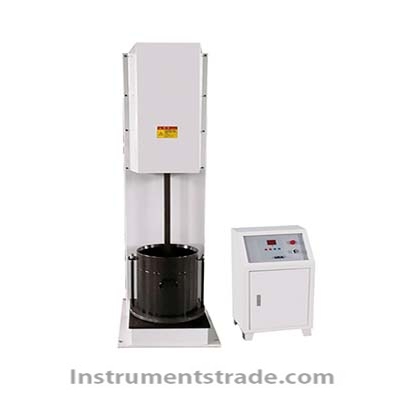

YDT-III Coarse grained Soil Electric Compaction Instrument Introduction: The coarse-grained soil electric compaction instrument is designed according to the GB/T 50123-2019 geotechnical test method standard to reduce the labor intensity of researchers and improve test efficiency. It adopts gear transmission to avoid the phenomenon of dropping hammer and inability to lift hammer. The advantages of automatic counting, automatic control, automatic shutdown, and automatic cyclic operation can be used for transportation research departments, teaching and construction units, laboratories, and on-site testing. Technical parameters: 1. Heavy compaction test: Hammer weight 35.2kg Drop distance: 600mm Hammer diameter: 150mm 2. Light compaction test: Hammer weight 15.5kg Drop distance: 600mm Hammer diameter: 150mm 3. Test tube size: Inner diameter 300mm, height: 288mm, sleeve height: 100mm 4. Hammer speed: 18-23 times/minute 5. Power supply (voltage): 380V 6. Power: 750W
Introduction: The coarse-grained soil electric compaction instrument is designed according to the GB/T 50123-2019 geotechnical test method standard to reduce the labor intensity of researchers and improve test efficiency. It adopts gear transmission to avoid the phenomenon of dropping hammer and inability to lift hammer. The advantages of automatic counting, automatic control, automatic shutdown, and automatic cyclic operation can be used for transportation research departments, teaching and construction units, laboratories, and on-site testing.
