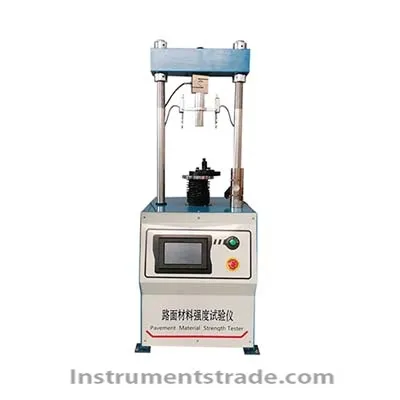

YTL-20A multifunctional pavement material strength tester Introduction: The comprehensive strength tester for pavement materials has the advantages of stable loading, large screw stroke, and simple operation. It is a necessary instrument for highway construction units, universities, and quality inspection departments. This machine is equipped with other related fixtures for conducting multiple tests, such as compressive strength, splitting strength, rebound modulus, etc. of cement and lime stabilized soil, Marshall test of asphalt concrete, bearing ratio (CBR) test of subgrade soil and various pavement materials, etc. Note: This product can only be used for pressure testing, and corresponding accessories are required for other tests Technical parameters: Maximum load: 200KN; Work schedule: 200mm; Working power supply: AC380V 50Hz (the host uses a three-phase power supply and does not require a neutral wire; The host is equipped with a phase sequence protector. If the host does not work after being powered on and emits an alarm sound, simply swap any two live wires Overall power: 0.55Kw Rising rate: two levels of 1mm/min and 50mm/min; Dimensions: 550X650X1500mm
Introduction: The comprehensive strength tester for pavement materials has the advantages of stable loading, large screw stroke, and simple operation. It is a necessary instrument for highway construction units, universities, and quality inspection departments. This machine is equipped with other related fixtures for conducting multiple tests, such as compressive strength, splitting strength, rebound modulus, etc. of cement and lime stabilized soil, Marshall test of asphalt concrete, bearing ratio (CBR) test of subgrade soil and various pavement materials, etc. Note: This product can only be used for pressure testing, and corresponding accessories are required for other tests
