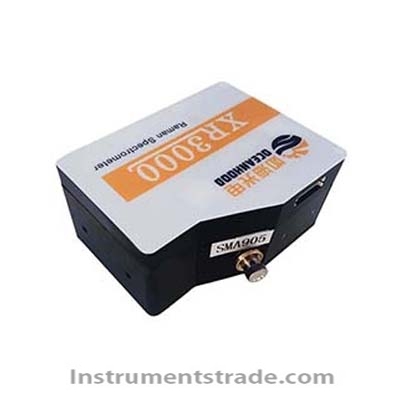

XR3000 Raman Fiber Optic Spectrometers

Product ID:FGgx020

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberXR3000
    Brand NameRHGD
    Payment TermsT/T, paypal
    Introduction:
    The XR3000 is a fiber optic spectrometer based on a CT-based optical design. The detector uses Hamamatsu infrared enhanced CCD area array sensor, and its effective spectral range is 780nm-1070nm.
            The spectrometer is mainly measured with a 785 nm Raman spectrum. The compact and robust design ensures that the spectrometer can achieve reliable and stable Raman spectroscopy measurements at 0-40°C. It provides a powerful guarantee for qualitative semi-quantitative Raman spectroscopy detection.
    Features:
    Compact size: Spectrometer overall size: 94mm ́72.5mm ́42mm, weighs only 420g
    High Resolution: Resolution is 8cm-1-12cm-1
    High sensitivity: High performance back-illuminated area array CCD
    Good thermal stability: Spectral wavelength deviation < 1cm-1@ 0-40°C, sensitivity deviation <2%
    Technical Parameters:
    Physical parameters
    Overall size: 94*72.5*42 mm
    Total weight: 420g
    Spectral parameters
    Spectral range: 780nm~1070nm (0~3400cm-1)
    Resolution: 10cm-1 @1000 cm-1 (typical, 785nm Laser)
    <0.9nm@852nm
    Signal to noise ratio: 450:1@100ms 85% Full signal
    Dark noise: ~30RMS@ 100ms
    Integration time: 8ms~5s
    Dynamic Range: 50000:1 (single acquisition)
    Wavelength stability: 0.1nm@0-40°C
    Sensitivity consistency: <5%@0-40°C
    Device specifications
    Slits: W25um, H400um
    Detector: Hamamatsu S11510-1106
    A/D Resolution: 16-Bit
    Power consumption: 220mA@5V
    CCD pixels: 2048 64
    Output interface: Mini USB
    Environmental parameters
    Working temperature: 0 ~ 40°C
    Operating Humidity: 5%-80%

  • Introduction:
    The XR3000 is a fiber optic spectrometer based on a CT-based optical design. The detector uses Hamamatsu infrared enhanced CCD area array sensor, and its effective spectral range is 780nm-1070nm.
            The spectrometer is mainly measured with a 785 nm Raman spectrum. The compact and robust design ensures that the spectrometer can achieve reliable and stable Raman spectroscopy measurements at 0-40°C. It provides a powerful guarantee for qualitative semi-quantitative Raman spectroscopy detection.
