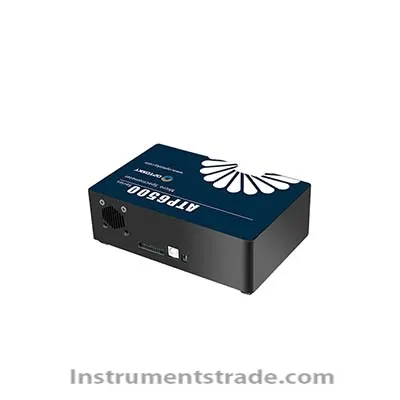

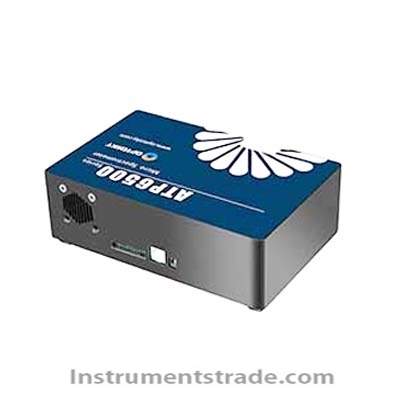

ATP6500 Scientific-class UV-Vis Spectrometer Introduction
Optosky ATP6500 Fiber Optic Spectrometer employs ultra-high performance, scientific class, 2048 x 64 pixel, semiconductor-cooled down to-20℃ in room temperature, a high-speed, back-thinned CCD array, reduced dark current. It greatly reduces sensor noise resulting in almost 2 times higher SNR than other competitors. It increases measuring reliability, and measuring results are not changed with temperature.
Optosky tailor-designs ultra-low noise CCD signal processing circuit inside, resulting in first-class quantitative noise that is lower than 3 counts.
ATP6500 receive lights via SMA905 connector or free space, and it outputs spectrum data via USB2.0/UART.
ATP6500 requires only 5V DC supply, and convenient to apply integration. Features
Detector：back-thinned CCD, cooled down to -15 ℃
CCD parameters：2048×64 pixels
Ultra-low noise CCD signal processing circuit
Ultra-high dynamic range
Ultra-low Etalon effect
Quantum efficiency>90%
Spectral range: 190-1100nm
Spectral resolution: 0.01-4nm(depend on spectral range, slit width)
Optical path：crossed Czerny-Turner (C-T)
Integration time：2ms-130s
power supply：DC 5V±10% @ <2.3A
18 bit, 570KHz A/D Converter
Entrance connector：SMA905 connector or free space
Output interface: high-speed USB2.0 or UART
20 pins, dual rows programmable extension connector Technical Parameters DETECTOR
Detector Type: back-thinned linear CCD (cooled down to -20ºC)back-thinned linear CCD (cooled down to -20ºC)
Spectral Range: 180-1100 nm
Effective Pixels: 1044×64pixels
Pixels Dimension: 24μm×24μm
Full Well Capacity: 200 Ke-
Sensitivity: 6.5 uV/e-
Dark Noise: 8 e-
OPTICAL PARAMETER
Wavelength Range: 180-1100nm
Optical Resolution: 0.01-1.3nm
Signal-To-Noise: >3000:1
Dynamic Range: >50000:1
Working Temperature: -10-45℃
Working Humidity: < 85%RH OPTICAL CONFIGURATION
Optical Design: f/4 crossed asymmetrical Czerny-Turner
Focal Distance: 98 mm for incidence / 107mm for output
Incident Slit: 50 μm (5, 10, 25, 50, 100, or 200 μm optional)
Incident Interface: SMA905 connector，free space ELECTRICAL PARAMETER
Integration Time: 1 ms - 130 second
Interfaces: USB 2.0 (480MHz High speed)
A/D Conversion Resolution: 18 bit
Supply Voltage: DC4.5 to 5.5 V (type @5V)
Operating Current: <3.2A
Storage Temperature: -20°C to +70°C PHYSICAL PARAMETERS
Dimension: 170×110×52 mm3
Weight: 1.3kg
Sealing: Anit-sweat
Introduction
Optosky ATP6500 Fiber Optic Spectrometer employs ultra-high performance, scientific class, 2048 x 64 pixel, semiconductor-cooled down to-20℃ in room temperature, a high-speed, back-thinned CCD array, reduced dark current. It greatly reduces sensor noise resulting in almost 2 times higher SNR than other competitors. It increases measuring reliability, and measuring results are not changed with temperature.
Optosky tailor-designs ultra-low noise CCD signal processing circuit inside, resulting in first-class quantitative noise that is lower than 3 counts.
ATP6500 receive lights via SMA905 connector or free space, and it outputs spectrum data via USB2.0/UART.
ATP6500 requires only 5V DC supply, and convenient to apply integration.
