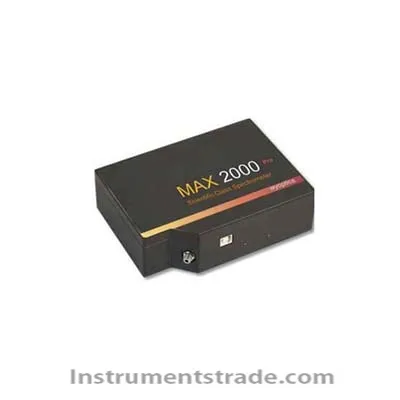

Introduction: The MAX2000-Pro fiber spectrometer (also known as portable spectrometer / miniature spectrometer) has high sensitivity, high quantum efficiency and high dynamic range, and can respond to the deep UV band (~ 185-300nm). The MAX2000-Pro uses the Hamamatsu back-illuminated area-array FFT-CCD and is perfect for applications that require high quantum efficiency and wider spectrum. The MAX2000-Pro is a perfect combination of the Hamamatsu ARBT back-illuminated FFT-CCD. The EX raster combines many of the advantages of low electronic noise, high UV sensitivity, high quantization efficiency, high dynamic range and ultra-wideband Low light detection, UV sensitive and broad band needs of the field of choice. Has the widest 185-1150 nm rich band. MAX2000-Pro common models, EX full-spectrum models and DUV deep UV variety to choose from. Technical Parameters: Size (mm): 115 * 158 * 46.5 Weight (g): 800 Detector: Hamamatsu S10420-1106 back-illuminated, area array FFT-CCD Detector response range (nm): 185-1100 Effective Pixels: 2048 X 64 Pixel Size (μm): 14 um square Detector area (mm): width 28.672, height 0.896 A / D conversion: 16, 500kHz Integration time: 11 ms - 5 seconds Sensitivity (V / lx • s): ~ 0.32 Counts / e- Optical system: F / 4, f / 4, symmetrical cross-light path Focal length (mm): 100 mm Slit size (μm): 5, 10, 25, 50, 100, 200, etc., or no slit (custom) Gratings: Scribing or holographic gratings with the same blazing wavelength for a variety of different parameters (customizable) Cylindrical mirror s: optional Eliminate secondary spectral filters: Bandpass or longpass filters to eliminate secondary spectrum Optical fiber and its connection interface: NA 0.22, SMA905 Spectral wavelength test range: dependent on grating selection, 185 ~ 1100nm Spectral Resolution (nm): ~ 0.035-8.4 nm FWHM (Determined by grating constant, slit width, detector type, etc.) SNR: 500: 01: 00 (full scale range) Wavelength tolerance: PWH * 20% Integration time: 1 millisecond to 2 seconds Dynamic range: 300 Stray light: <0.05% at 600 nm; <0.10% at 435 nm Correction linearity:> 99.8% Power consumption: 500 mA × 5 V DC Data transfer rate: Full spectrum read into memory time via USB 2.0 interface 3.0 ms computer configuration Operating System Windows / XP (32-bit) Data transfer interface USB 2.0 (480Mbps), compatible with USB 1.1
Introduction: MAX2000-Pro fiber spectrometer (also known as portable spectrometer / micro spectrometer) has high sensitivity, high quantization efficiency and high dynamic range, and can respond to the deep ultraviolet band (~ 185-300nm). The MAX2000-Pro fiber spectrometer uses a Hamamatsu back-illuminated area array FFT-CCD, which can be perfectly applied to those fields that require high quantization efficiency and wider spectral bands.
