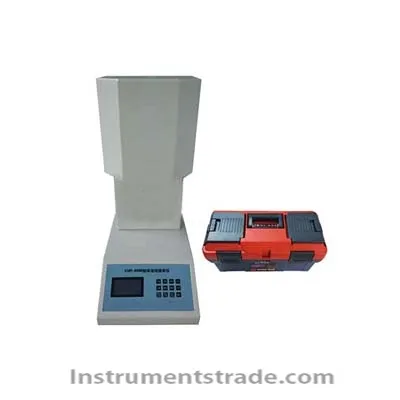

Introduction: XNR-400B melt index is based on "GB / T 3682-2000 thermoplastic melt flow rate and melt volume flow rate measurement", "ISO 1133-2005 Plastics-Determination of the melt mass-flow rate (MFR ) and the melt volume-flow rate (MVR) and other standards designed and manufactured for the determination of thermoplastic melt flow rate of the instrument. The instrument uses the quality test; with automatic cutting device; with a micro-printer printout test results; with melt index calculation function, with FLASH memory, can store 20 test results. The instrument has the advantages of simple structure, convenient use, accurate measurement, stable and reliable performance. This instrument is not only suitable for the testing of plastics with lower melting temperature such as polyethylene, polypropylene, polystyrene and ABS resin, but also for the testing of engineering plastics such as polycarbonate, fluoroplastic and nylon with high melting temperature Is widely used in plastic production, plastic products, petrochemical and other industries and the relevant tertiary institutions, research institutes, commodity inspection departments. Features: 1, using liquid crystal display Chinese display, keyboard input, you can intuitively and easily set the time, temperature, sampling times. 2, 32-bit high-end microcontroller as the control core, computing speed, high data accuracy. Adopt ADC of 24 American AD Company, the temperature is collected fast, the collection precision is high, provided the physical assurance for the accuracy of the temperature control. 4, using embedded operating system, the internal task scheduling is reasonable, timing, delay and other control accuracy, to ensure temperature control, voice prompts and other operations accuracy. 5, can calculate, save, print test results. 6, the use of quality method (MFR) test. 7, automatic cutting during testing, manual adjustment when the instrument cut material. 8, The aircraft looks beautiful, reasonable design, stable performance, easy operation. Technical Parameters: 1. Extruded the part Outlet diameter: Φ2.095 ± 0.005 mm The discharge port length: 8.000 ± 0.025 mm Loading tube diameter: Φ9.550 ± 0.025 mm Loading cylinder length: 152 ± 0.1 mm Piston rod diameter: Φ9.475 ± 0.015 mm Piston head length: 6.350 ± 0.100 mm Piston rod effective stroke: 30 mm 2. Test load The test load is obtained by combining different weights, which make up the nominal load required for the test. There are 8 stages: Level 1: 0.325kg = (Piston rod + weight tray + insulation sleeve + 1 # weight body) = 3.187N Level 2: 1.200kg (0.325kg + 2 # 0.875kg weight) = 11.77N Level 3: 2.160kg = (0.325kg + 3 # 1.835kg weight) = 21.18N Level 4: 3.800kg = (0.325kg + 4 # 3.475kg weight) = 37.26N Level 5: 5.000kg = (0.325kg + 5 # 4.675kg weight) = 49.03N Level 6: 10.000kg = (0.325kg + 5 # 4.675k weight + 6 # 5.000kg weight) = 98.07N Grade 7: 12.500kg = (0.325kg + 5 # 4.675kg weight + 6 # 5.000kg weight + 7 # 2.500kg weight) = 122.58N Grade 8: 21.600 kg = (0.325 kg + 2 # 0.875 kg weight + 3 # 1.835 kg weight + 4 # 3.475 kg weight + 5 # 4.675 kg weight + 6 # 5.000 kg weight + 7 # 2.500 kg weight Code + 8 # 2.915kg weight) = 211.82N 3. Temperature range: room temperature ~ 400 ℃ 4. Temperature control accuracy: ± 0.2 ℃ 5. Temperature Fluctuation: ± 0.2 ℃ 6. Temperature resolution: 0.1 ℃ 7. Temperature recovery time: ≤ 4min 8. Test Method: Quality Method (MFR) 9. Measuring range: O.1 ~ 300g / 10min (MFR) 10. Timing accuracy: 0.1S (MFR, MVR) 11. Cutting methods: automatic (during the test), manual (instrument adjustment) 12. The largest number of cuts: 9 times 13. The maximum cut interval: 9999.9 seconds 14. The number of results saved: 20 copies 15. Printer Configuration: Panel thermal printer 16. Power supply: 220V, 50Hz Power: 490W 18. Overall dimensions: length 290 × thickness 410 × height 630 (mm)
Introduction: XNR-400B melt index is based on "GB / T 3682-2000 thermoplastic melt flow rate and melt volume flow rate measurement", "ISO 1133-2005 Plastics-Determination of the melt mass-flow rate (MFR ) and the melt volume-flow rate (MVR) and other standards designed and manufactured for the determination of thermoplastic melt flow rate of the instrument. The instrument uses the quality test; with automatic cutting device; with a micro-printer printout test results; with melt index calculation function, with FLASH memory, can store 20 test results. The instrument has the advantages of simple structure, convenient use, accurate measurement, stable and reliable performance. This instrument is not only suitable for the testing of plastics with lower melting temperature such as polyethylene, polypropylene, polystyrene and ABS resin, but also for the testing of engineering plastics such as polycarbonate, fluoroplastic and nylon with high melting temperature Is widely used in plastic production, plastic products, petrochemical and other industries and the relevant tertiary institutions, research institutes, commodity inspection departments.
