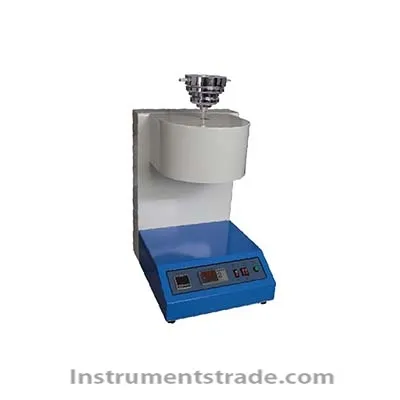

Introduction The instrument adopts the new generation of artificial intelligence instrument temperature control and on-off time relay output control, instrument dinky temperature cycle is short, overshoot, temperature control part adopts the molding temperature control unit table and make the temperature control accuracy and stability of products such as to be able to get effective guarantee.In order to facilitate users to use, this kind of melt index instrument can be in control, manual two methods of blanking blend (blanking interval and blanking time can be set arbitrary).Melt index instrument for Taiwan machine, intelligent products, high automatic degree and the scope is wide, fast heating, high precision, stable performance and reliable products, plastic raw materials and plastic products manufacturing enterprises and the quality supervision and inspection institutes and colleges and universities the ideal experiment and teaching instruments.)
Technical parameters Measuring range: 0.1 to 400.00 g / 10 min (MFR)
Temperature: room temperature - 450 ℃ Temperature control precision: plus or minus 0.2 ℃ Timing accuracy: 1 S or 0.01 S
Timing range: 1-9999 - S or 0.01 99.99 S
Load, full load
Blanking method: manual and control
Cylinder diameter: 9.550 mm + / - 0.025 mm
Cylinder length: 160 mm
Mouth mold: material for tungsten carbide, length: 8.000 mm + / - 0.025 mm diameter: 2.095 mm + / - 0.005 mm
Power: 0.45 KW
Power supply: AC220V, 50 hz
Instrument size: 400 mm * 500 mm * 600 mm
Instrument net weight: 60 kg
