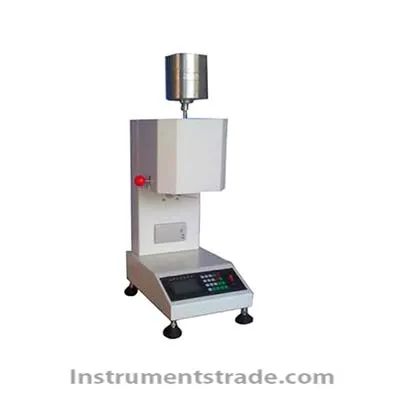

Introduction The melt flow rate instrument meter was improved, increasing the function of many, the instrument configuration, the service life of the instrument, convenience of operation, has greatly increased measurement precision, has the domestic general melt flow rate instrument have incomparable advantages and cost performance.
Features 1. Heat up fast, overshoot is a very small amount
2. High precision constant temperature
3. After packing, can quickly restore the constant temperature condition
4. Test parameters calibration and correction is convenient
5. Manual and automatic cutting material test method can be used
6. Chinese liquid crystal display (LCD)
7. Equipped with a printer, the test results will be automatically printed output Technical parameters 1. Squeeze the discharging part
Discharging mouth diameter: Φ 2.095 + / - 0.005 mm, discharging mouth length: 8.000 + / - 0.025 mm
Charging tube diameter: Φ 9.550 + / - 0.025 mm, charging barrel length: 152 + / - 0.1 mm
The piston rod head diameter: 9.475 + / - 0.015 mm, the piston rod head length: 6.350 + / - 0.100 mm
2. Standard test load (grade 8 full weight)
3. The temperature range: normal room temperature, 400 ℃ 500 ℃ (optional)
4. Constant temperature precision: plus or minus 0.5 ℃ 5. The display resolution: 0.1 ℃ 6. Method of blanking: players move or automatic cutting material
7. The temperature recovery time: less than 4 minutes
8. Print: the micro printer automatically print output
9. The power supply voltage: AC220V plus or minus 10% 50 hz
