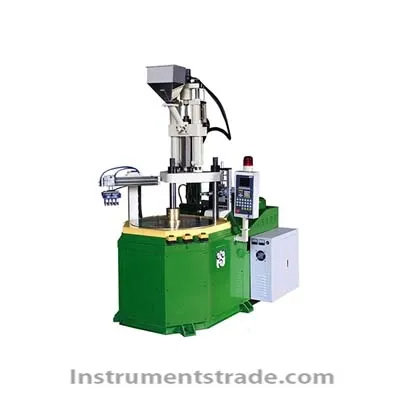

Features: Servo motor shaft injection molding machine disc injection molding machine 160T, Double alloy tube group; High temperature plastic special ceramic heating ring; Machine matching servo control, energy saving 50% ~ 80%; Turntable with servo control, stable operation, precise; According to customer needs to choose the barrel, the amount of injection; Die more disc machine (2 ~ 8) a die, improve production efficiency! Technical Parameters: Injection device: Screw diameter mm: Φ45 Φ50 Φ55 Theoretical injection volume ㎝ 3: 318 393 475 Injection molding quality (PC) g (oz): 289 (10.2) 357 (12.6) 432 (15.8) * Large Injection Pressure Mpa (kgf / cm2): 199 (2032) 161 (1646) 133 (1361) Injection rate cm3 / sec: 178 220 266 Injection speed mm / s: 112 Screw speed r.p.m: 10 ~ 300 Nozzle protruding template size mm: ≧ 45 Clamping device: Clamping force KN (tf): 1568 (160) Clamping stroke mm: 300 The minimum thickness mm: 300/400 * Big distance mm: 600/700 Turntable diameter mm: Φ1360 * Large mold size (L * W) mm: 500 * 500 Finished the top of the distance mm: 125 Top output KN (tf): 45 (4.6) other: System pressure Mpa (kgf / cm2): 13.7 (140) Fuel tank capacity L: 880 Motor power KW (HP): 22 (30) Electric power KW 14.2 Mechanical Dimensions (L * W * H) m: 2.3 * 2.1 * 4.1 Mechanical weight tf: 9.4
Features: Servo motor shaft injection molding machine disc injection molding machine 160T, Double alloy tube group; High temperature plastic special ceramic heating ring; Machine matching servo control, energy saving 50% ~ 80%; Turntable with servo control, stable operation, precise; According to customer needs to choose the barrel, the amount of injection; Die more disc machine (2 ~ 8) a die, improve production efficiency!
