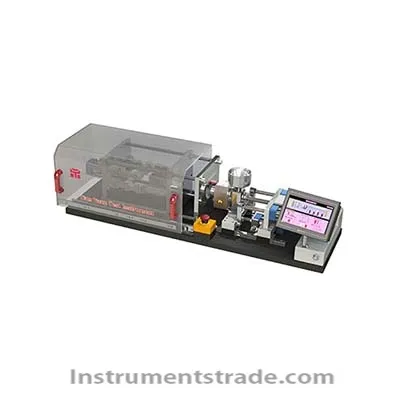

Introduction The instrument to miniature and improved production with the machine has small volume, strong mobility, suitable for classroom teaching and the preparation of various standards of spline is used in other physical properties such as tensile, impact test of small sample.The products include mould and injection mould parts, sol component, the fuselage, heating system, control system and feeding device.It has a simple structure, convenient operation, no noise pollution;Use 220 v voltage, can be used in any electric fields, not restricted by industrial power. Technical parameters Control mode: PLC man-machine interface (touch screen)
Table size: 1200 x 380 mm
Mould stroke: 110 ~ 300 mm
Template size: 320 x 320 mm
Hang mould specification: 220 x 200 mm
Hang mould check mouth size: 4 x 5 mm
Clamping pressure: about 500 kg
Injection stroke: 100 mm
45 grams injection quantity:
Demo mould maximum size: 220 * 200 * 280 mm
Column span: 280 x 280 mm
Injection barrel temperature control temperature: 180 ℃ ~ 350 ℃ Temperature control precision: plus or minus 0.5 ℃ Clamping motor power: air pressure
Injection of motor power: air pressure
Sol motor power: air pressure
Fever circle power: 400 w
Plastic raw materials: engineering plastic PP, ABS, etc
Machine weight: 170 kg
Introduction The instrument to miniature and improved production with the machine has small volume, strong mobility, suitable for classroom teaching and the preparation of various standards of spline is used in other physical properties such as tensile, impact test of small sample.The products include mould and injection mould parts, sol component, the fuselage, heating system, control system and feeding device.It has a simple structure, convenient operation, no noise pollution;Use 220 v voltage, can be used in any electric fields, not restricted by industrial power.
