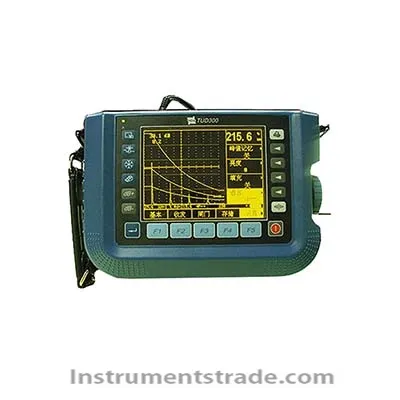

Brief introduction: TUD300 digital ultrasonic flaw detector is a portable industrial nondestructive flaw detection instrument. It can fast, convenient and noninvasive and accurate artifacts within a variety of defects (cracks, inclusions, porosity, porosity, etc.). High reliability, good stability, can comprehensively and objectively to collect and store data, and the collected data in real time or after processing, the signal in time domain, frequency domain, or image analysis, to reduce the influence of artificial factors, improve the reliability and stability of the retrieval, truly achieve castings, forgings, plate, weld inspection easy! Features: 1. The peak memory function 2. Automatic gain control 3. The knob to adjust quickly, the operation is convenient 4. Repeat firing rate is as high as 1 KHZ 5. Type B display mode 6.10 single detection channel 7. High sampling rate, radio frequency waveform details now 8. The screen refresh rate is as high as 60 hz, no delay, no ghosting, rapid capture wave 9. The entire software can online upgrade through the communication port 10. Store 300 A scanning pattern and parameters and the thickness value is 64000 11. In the single probe, double probe and arbitrary switching between transmission of three methods for detection 12. The probe damping through the menu selection switch between in 50150400 13. With linear inhibitory function, can suppress screen high of 0% ~ 80%, interval: 1% With the system parameters with 14. Lock and unlock function 15. With functions of freezing and thawing of the screen 16. Have waterproof function Technical parameters: Scan range (mm) : 2.5 ~ 5000 mm waves (steel) Pulse displacement of mu (s) : - 20 ~ + 3400 mu s Probe zero mu (s) : 0 ~ 99.99 mu s mu s, resolution of 0.01 mu s Material velocity (m/s) : 1000 m/s ~ 9999 m/s Output damping (W) : 50 | 150 | 400 Frequency range (MHz) : low frequency 0.2-1 | intermediate frequency 0.5-4 high frequency 3-15 | 3 | file is optional Gain control (dB) : 0 ~ 110 dB adjustment step: 0.2 0.5 | | 1 | 2 | | 6 12 | 0.0 locking Vertical linear error: 3% or less Horizontal linear error: 0.2% or less Detection sensitivity allowance: 60 db or higher (2.5 MHz/Z20 20-2) Dynamic range: p 34 db Installation dimensions (mm) : 240 * 170 * 70 mm Weight (kg) : 1.47 kg
Brief introduction: TUD300 digital ultrasonic flaw detector is a portable industrial nondestructive flaw detection instrument. It can fast, convenient and noninvasive and accurate artifacts within a variety of defects (cracks, inclusions, porosity, porosity, etc.). High reliability, good stability, can comprehensively and objectively to collect and store data, and the collected data in real time or after processing, the signal in time domain, frequency domain, or image analysis, to reduce the influence of artificial factors, improve the reliability and stability of the retrieval, truly achieve castings, forgings, plate, weld inspection easy!
