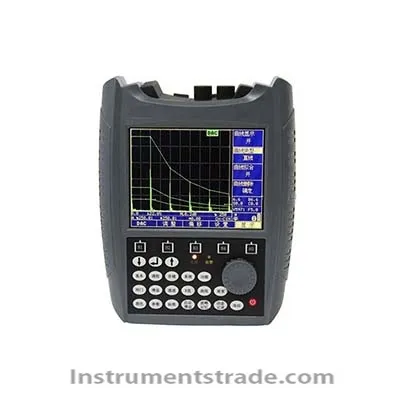

 SUB100 type ultrasonic flaw detector for Metal flaw detection

Product ID:WWcsts001

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model Number SUB100
    Brand NameYM
    Payment TermsT/T, paypal
    Features:
    1.10 independent inspection channels, are free to set up and store a variety of detection technology and standards can save 100 inspection waveform signal and data
    2. The real-time dynamic color video, video time maximum 50 minutes
    3. The thickness of A scan and B scan of 2 kinds of scanning way
    4. The square wave pulse generator, pulse width adjustable, applicable to detect different materials, different depth of the workpiece defect;
    5. DAC curve production;
    6. 5.7 inch TFT color screen display, the user can according to the environment to set the screen color
    7. Compatible with single crystal straight, single crystal, twin, transmission of the probe
    8. Half wave of positive and negative half wave and full wave, three kinds of detection methods
    9. The main menu, submenu in the same window display. Be clear at a glance, simple operation, easy to find
    10. Main function through shortcuts to realize fast into, shuttle wheel convenient quickly adjust the Settings
    11. A variety of optional industry report
    12. Data can be imported computer through usb interface
    Technical parameters:
    Detection range: 0 ~ 9999 mm
    Operating frequency: 0.2 MHz -- 15 MHz
    Sound velocity range: 1000 m/s ~ 9999 m/s
    Gain range: 0 db, 110 db
    Sampling frequency: 100 MHZ
    Impedance matching: 100, 150, 200, 150, 4 gears is adjustable
    Show delay - : 20 mu s - + 3400 mu s
    Partial: probe zero mu, 99.99 mu s s
    Electrical noise level: 10% or less
    Sensitivity allowance: > 62 db
    Resolution: > 40 db (5 p14)
    Restrain linear inhibition: 0 ~ 80% (digital)
    Vertical linear error: 3% or less
    Horizontal linear error: 0.1% or less
    Dynamic range: 32 db or higher
    Power supply: 12 x 3.7 V (lithium battery)
    Ambient temperature: - 20 ℃, 50 ℃
    Environmental humidity: 20% - 90% RH
    Control interface, high-speed USB2.0 interface
