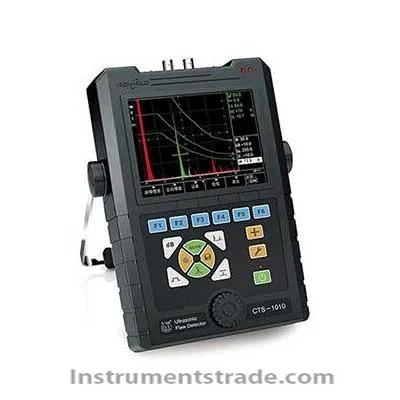

Brief introduction: CTS - 1010 rail weld flaw detector equipped with domestic advanced industry of square wave excitation technology, stable performance, light and portable, easy to operate, high performance-price ratio. Instrument in line with the new capacity gauge TSG R0004-2009, compatible with the eu EN12668-1:10 standard requirements. Screen adopts the advanced semi-permeable half reflex high-resolution TFT screen (640 x 480), fully competent in the outdoor work and direct sunlight environment; Equipped with up to six to eight hours of continuous work of high-performance lithium-ion batteries, the weight is only 1.5 kg, especially suitable for railway transportation departments NDT operation used in the scene. Features: 1. Detection of six special channel, each channel parameters can be adjusted independently. 2. Detection of humanized menu design, the instrument is easy to operate, use more easily. 3. The multi-function shortcut button design, user can customize the buttons function for easy operation. 4. Advanced circuit design, up to 640 MHZ sampling frequency, to ensure that can quickly and accurately to the flaw echo for display and analysis. 5. Has good penetration and signal-to-noise ratio; Detection of thin workpiece and composite material has high resolution. 6. FIR digital filter technology, the signal-to-noise ratio is better; High-performance TFT screen (640 x 480), the most suitable for outdoor and bright light. 7. Compatible with European standard EN12668-1:2000 design; It can continuous recording and storage for a long time, meet the new capacity gauge TSG R0004-2009 requirements. 8. Automatic calibration material velocity, the probe delay, probe K value; Production and application of convenient DAC curve. 9. SD card socket, the realization of mass storage; USB port can be an external USB drive, keyboard, mouse, which can realize communication with the computer, data transfer and print. 10. Weight about 1.5 kg of instrument, include batteries and chargers, operation and convenient to carry. Technical indicators Pulse types: FuFang wave, launch 25 ~ 250 v voltage adjustable, step by step to 25 v. Working frequency: broadband, narrowband two gears, broadband: 0.5 ~ 15 MHZ, narrow band: 1.5 ~ 3 MHZ Gain: 0.0 ~ 110.0 dB Detection range: 0.0 to 10000 mm waves (steel), the continuous adjustable, minimum step value of 0.1 mm Detection means: positive, negative, full wave, radio frequency (RF) Display: 5.7 "TFT color LCD display, 640 x 480 resolution Pulse shift: 7.5 ~ 3000 mu s Probe zero: 0 ~ 999.9 mu s Pulse repetition frequency: 25 ~ 800 hz, automatically adjust the way Horizontal linear error: 0.4% or less Resolution: 36 db (p14) 5 or more Dynamic range: 32 db or higher Inhibition: (0 ~ 90) %, does not affect the linear and gain Power supply: the large capacity lithium battery, can work continuously 6 ~ 8 hours Weight: 1.50 kg (including, built-in battery charger) High volume (* width * thickness) : 47 mm * 166 mm * 246 mm
