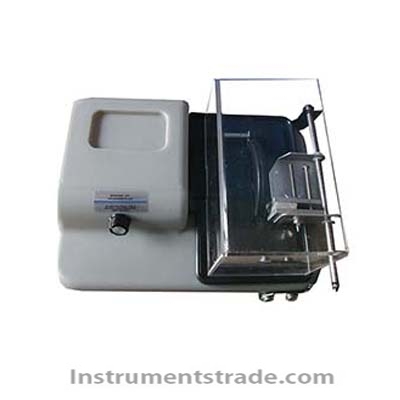

SYJ-40 fast cutting machine for laboratory

Product ID：SYZYXJqg006

Price: Please inquire PDF Format

Supply Ability:20SETS/MON

Port:SHENZHEN

Product Introduction
Consulting

Model NumberSYJ-40

Brand NameYIMA

Payment TermsT/T, paypal

Brief introduction
SYJ-40 fast cutting machine is used for rough machining of crystal, ceramics, quartz glass, rock and ore and metallographic samples of materials, suitable for colleges and universities, the research. Not only can the realization of linear cutting machine, cutting can also achieve a certain angle.
Technical parameter

Model
Installation condition	This equipment is required at an altitude of 1000 m, under temperature 15 ℃, 25 ℃ + humidity to 55% Rh + 55% Rh. 1, water: the equipment is equipped with circulation channel (pure water or deionized water). 2, electric: AC220V;50 hz, must have a good base. 3, gas: no. 4, the workbench: 600 mm (L) * 600 mm (W) * 700 mm (H), bearing more than 50 KGS. 5, ventilation device: need.
Fetures	Can cut a certain Angle.Small volume, low noise, smooth operation, easy clean, simple operation.
Parameters	1, the power supply voltage: 220 v 2, power: 80 w 3, speed range: 650 RPM to 2500 RPM 4, saw blades: Φ 100 mm 5, maximum cutting size: 25 mm x 40 mm
Dimension & Weight	Dimension:400mm×300mm×200mm;Weight:7kg

Brief introduction
SYJ-40 fast cutting machine is used for rough machining of crystal, ceramics, quartz glass, rock and ore and metallographic samples of materials, suitable for colleges and universities, the research. Not only can the realization of linear cutting machine, cutting can also achieve a certain angle.
