Features: 1. Adopting international advanced full spectrum method; 2. The measurement of all kinds of LED light source & spectral power distribution, chromaticity coordinates, color temperature, color rendering index, color tolerance, color deviation, color purity and dominant wavelength, luminous flux, radiation parameters such as power, efficiency of light; 3. Cooperate with relevant instrument can test object to be tested at the same time the parameters such as voltage, current, power, power factor; 4. The USB interface, convenient connection with a variety of computer; 5. Test software: standard Chinese and English operation interface, conform to the requirements of the internationalization, beautiful and easy to use test software; 6. The test data and analysis results can be exported Excel and PDF format statement; 7. : CIE NO. 127, CIE NO. 63, SJ/T 2355, GB/T 7922-2003, GB/T 8417-1987, CIENO. 15, etc Technical indicators Communications: USB Measurement method: transient, and fast Wavelength range: 380 nm to 780 nm Wavelength accuracy: + / - 0.3 nm Wavelength fluctuation: 0.2 nm Measurement bandwidth: 1.6 nm Chromaticity accuracy: + / - 0.0008 (standard A light source) Photometric linear: 0.5% Stray light: 1.00 e-03 Optic range: 0.01 lm to 0.01 * 10 ^ 5 lm integrating sphere (select) Color temperature range: 1500 k to 35000 k Measurement speed: 3 ms ~ 2000 ms
Introduction：

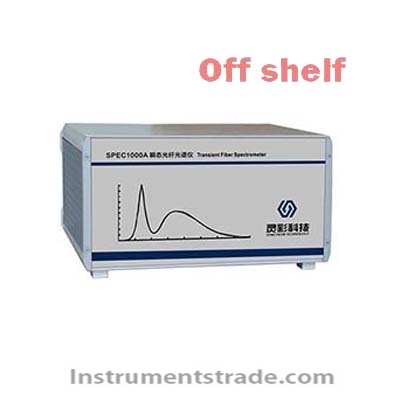

SPEC1000A transient optical fiber spectrometer uses precision array CCD and high-quality grating, with fast test speed and high accuracy. SPEC1000A transient fiber spectrometer is suitable for spectrum measurement of LED light sources & lamps.
