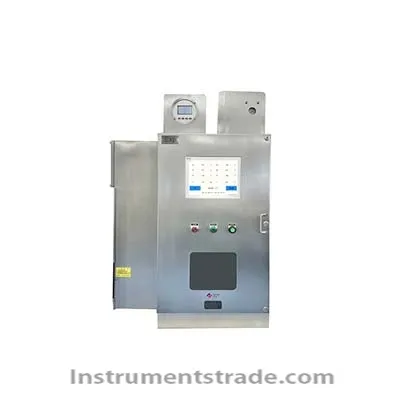

RS2600PAT gas online analyzer Introduction: The gas analyzer is based on the principle of laser Raman spectroscopy and can detect all gases except inert gases, enabling simultaneous online analysis of multi-component gases. 1. The petrochemical industry can detect hydrocarbon gases such as CH4, C2H6, C3H8, C2H4, etc 2. The fluorine chemical industry can detect corrosive gases such as F2, BF3, PF5, HCl, HF, etc 3. The metallurgical field can detect gases such as N2, H2, O2, CO2, CO, etc 4. Can detect isotopic gases such as H2, D2, T2, HD, HT, DT, etc characteristic: 1. Multi component: Simultaneous online analysis of multi-component gases 2. General: including homonuclear diatomic gases (N2, H2, F2, Cl2, etc.), isotopic gases (H2, D2, T2, etc.), can detect almost all gases except rare gases 3. Second level response: Complete a single detection within seconds 4. No maintenance required: can withstand high pressure, can directly detect without consumables (chromatographic column, carrier gas) 5. Wide quantitative range: detection limit as low as ppm level, range up to 100 upper limit Technical parameters: Model: RS2600PAT Technical principle: Raman scattering spectroscopy Excitation wavelength: 532 ± 0.5 nm Spectral range: 200~4200 cm-1 Spectral resolution: Full spectrum range ≤ 8 cm-1 Air interface: Standard card sleeve connector, 3mm, 6mm, 1/8 ", 1/4" optional Preheating time:<10 minutes Power supply: 100~240VAC, 50~60Hz Sample gas pressure: ＜ 1.0MPa Environmental temperature: -20 ℃~60 ℃ Environmental humidity: 0~90% RH Host size: 600 mm (length) x 400 mm (width) x 900 mm (height) Host weight: 250kg Communication: RS485, RJ45 Ethernet ports, providing ModBus protocol, adaptable to multiple types of industrial control systems, and able to provide feedback results to the control system
Introduction: The gas analyzer is based on the principle of laser Raman spectroscopy and can detect all gases except inert gases, enabling simultaneous online analysis of multi-component gases. 1. The petrochemical industry can detect hydrocarbon gases such as CH4, C2H6, C3H8, C2H4, etc 2. The fluorine chemical industry can detect corrosive gases such as F2, BF3, PF5, HCl, HF, etc 3. The metallurgical field can detect gases such as N2, H2, O2, CO2, CO, etc 4. Can detect isotopic gases such as H2, D2, T2, HD, HT, DT, etc
