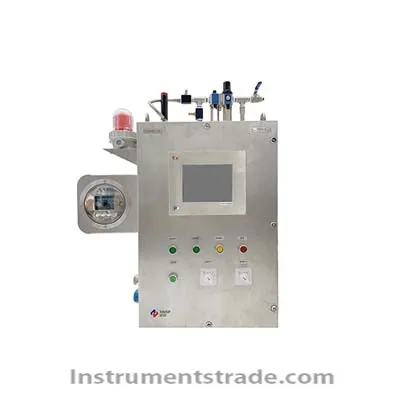

RS2000PAT Liquid Online Analyzer Introduction: The production process of chemical/pharmaceutical/material technology requires continuous analysis and monitoring of components. Jianzhi Technology provides an online monitoring solution for production sites, which can perform in-situ, real-time, continuous, and rapid online monitoring of the content of each component in the reaction, determine the reaction endpoint, and prompt abnormal reactions. application area 1. Extreme condition chemical reaction/biological process production monitoring 2. Chemical reactions/biological processes that require timely intervention due to abnormal reactions or reaction endpoints 3. Product quality/consistency control in large-scale production characteristic: 1. In situ: No sampling required, avoid contact with hazardous samples 2. Real time: Provide results within seconds 3. Continuous: Continuous monitoring throughout the entire process 4. Intelligence: Automatically provide analysis results 5. Interconnection: Timely feedback of results to the central control system Technical parameters: Number of detection channels: single channel Cabinet size: 600 mm (length) x 400 mm (width) x 900 mm (height) Equipment dimensions: 900 mm (length) x 400 mm (width) x 1300 mm (height) Operating temperature: -20~50 ℃ Host explosion-proof rating: Exd px IIC T4 Gb, suitable for Zone 2 factory environment Thermostatic device: Designed with a three-level temperature control system, it can operate stably for a long time in an environment of -20~50 ℃, suitable for online monitoring environments in different factories Communication: RS485, RJ45 Ethernet ports, providing ModBus protocol, adaptable to multiple types of industrial control systems, and able to provide feedback results to the control system Probe: Comes standard with one 5m non immersed fiber optic probe (PR100) Multi component monitoring: It can simultaneously obtain the content of multiple components during the reaction process, continuously and real-time collect single channel signals, provide real-time information on substance content and change trends, and achieve intelligent analysis of unknown components during the reaction process Consistency: Device calibration and model transfer patented algorithms ensure consistency of data across multiple devices Intelligent modeling: intelligent matching algorithms, or customized multiple machine learning models according to needs, to achieve one click automatic modeling Self learning modeling: With self-learning modeling function, it does not require sampling or manual modeling. It can intelligently select collection parameters, monitor in situ to obtain the trend of each component in the system, automatically identify and assist in analysis, and help understand and monitor reactions 24-hour operation: built-in real-time automatic calibration and self check, constant temperature control, and positive pressure protection. Normal operation in high and low temperature, explosive, and corrosive environments %Relative humidity: 0~90% RH Equipment power: 900 W (max) 500 W (typical running) Preheating time:<60 minutes
Introduction: The production process of chemical/pharmaceutical/material technology requires continuous analysis and monitoring of components. Jianzhi Technology provides an online monitoring solution for production sites, which can perform in-situ, real-time, continuous, and rapid online monitoring of the content of each component in the reaction, determine the reaction endpoint, and prompt abnormal reactions. application area 1. Extreme condition chemical reaction/biological process production monitoring 2. Chemical reactions/biological processes that require timely intervention due to abnormal reactions or reaction endpoints 3. Product quality/consistency control in large-scale production
