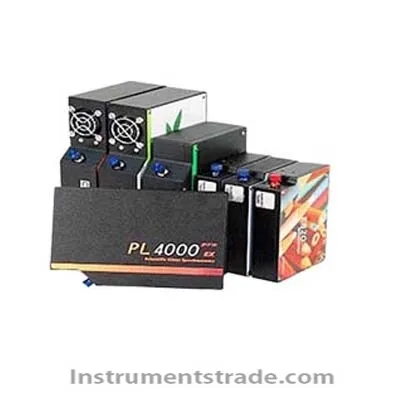

PL4000_Fiber Spectrometer Introduction
Scientific grade PL4000, laboratory grade PL-NOVA and other types of products, including the spectrometer flagship product PL4000 (scientific grade) high resolution fiber spectrometer with special optical design and high pixel CCD, can provide optical resolution up to 0.035nm, for laser Applications such as characterization, gas absorption measurements, and plasma analysis provide the best spectral measurements. The PL4000 high-resolution full-band fiber spectrometer with UV-sensitized CCD, EX-grating, and EX filters extends the spectrum detection range to the deep-UV range. At the same time, under the same performance guarantee, the PL4000 high-resolution fiber spectrometer is only 60% of the imported products, with high resolution and high cost performance, saving you money. Technical parameters
Wavelength range: 200-1100 nm (depending on grating and filter selection)
Optical resolution: ~0.035-8.4 nm FWHM
Signal to noise ratio: 300:1
A/D resolution: 16 bits
Dark background: 12 RMS counts
Sensitivity: 2 x 10^8 (system); single acquisition 1300:1
Integration time: 1 millisecond to 2 seconds
Stray light: <0.05% at 600 nm; <0.10% at 435 nm
Correction linearity: >99.8%
Introduction
Scientific grade PL4000, laboratory grade PL-NOVA and other types of products, including the spectrometer flagship product PL4000 (scientific grade) high resolution fiber spectrometer with special optical design and high pixel CCD, can provide optical resolution up to 0.035nm, for laser Applications such as characterization, gas absorption measurements, and plasma analysis provide the best spectral measurements. The PL4000 high-resolution full-band fiber spectrometer with UV-sensitized CCD, EX-grating, and EX filters extends the spectrum detection range to the deep-UV range. At the same time, under the same performance guarantee, the PL4000 high-resolution fiber spectrometer is only 60% of the imported products, with high resolution and high cost performance, saving you money.
