Introduction:

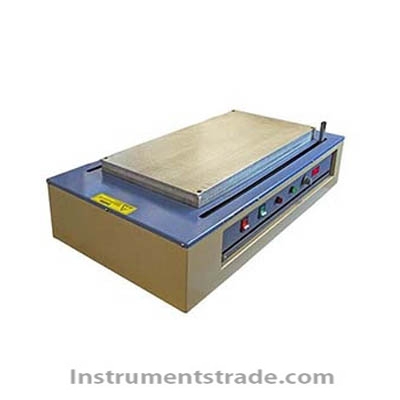

MSK-AFA-II-VC automatic coating machine is widely used in a variety of high-temperature coating research, such as ceramic film, crystal film, battery material film, special nano-film and so on. Features:
1, uniform coating.
2, has passed CE certification.
Technical Parameters:
Power supply: 220V 350W
Coating speed: 1mm/s-100mm/s
Coating stroke: 550mm
Vacuum plate: 600mm×300mm×20mm
Film Maker Adjustable Range: 0.02mm-5mm Installation Conditions
Size: 805mm×430mm×223mm
Weight: 45kg Conditions of Use:
This equipment is required to be used at altitudes below 1000m, temperature 25°C±15°C, and humidity 55%Rh±10%Rh.
1, water: no
2, electricity: AC220V 50Hz, must have a good ground
3, gas: no
4、Workbench: size 800mm×600mm×700mm, load-bearing more than 200kg
5, ventilation device: no Optional accessories:
1, vacuum pump
2, film maker
Introduction:
MSK-AFA-II-VC automatic coating machine is widely used in a variety of high-temperature coating research, such as ceramic film, crystal film, battery material film, special nano-film and so on.
