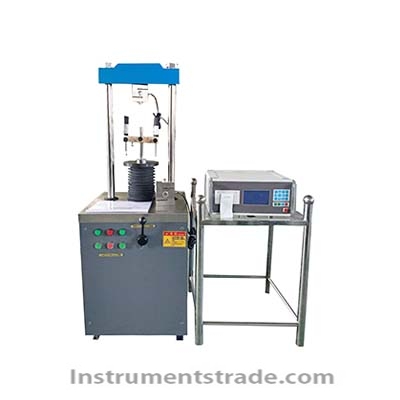

LD127-II pavement material strength tester Introduction: The pavement material strength tester is a multifunctional experimental instrument for highway subgrade materials, which is composed of a base, gearbox, column, bracket, motor, electrical switch, and other components. characteristic: 1. Combining computer technology with high-precision sensor technology. 2. Equipped with overload protection and over fall protection. 3. Easy to operate, accurate test data, stable and reliable performance. 4. Manual testing of the instrument, displaying the instantaneous pressure and A large pressure during the deformation of the test piece. 5. It can store the test results of 15 sets of specimens. 6. Digital display of pressure. 7. Compression and lime soil splitting tests can be conducted. 8. There are two speeds: fast and slow. 9. Micro printers can be optionally equipped. Technical parameters: Maximum rated load: 99.99 Kn Maximum movement distance of screw: 200mm Mobile speed: Fast 50mm/min Slow speed 1m/min Manual speed: 0.2mm/crank per turn Motor specification: 550w 380v1400p/min Weight: 120KG Dimensions: 600x600x1450mm Power supply voltage: 380V Power: 800W Environmental temperature: ≤ 35 ℃. Relative humidity: ≤ 85%
Introduction: The pavement material strength tester is a multifunctional experimental instrument for highway subgrade materials, which is composed of a base, gearbox, column, bracket, motor, electrical switch, and other components.
