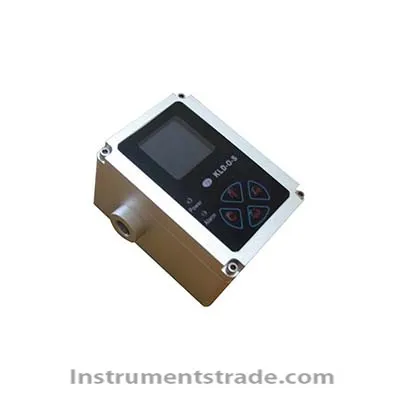

Brief introduction KLD-O-S is an on-line oil particle counter integrated with moisture sensor. it can indicate the oil contamination as well as water content in oil. KLD-O-S on-line oil pollution degree moisture meter can be used to detect mineral oil or phosphoric acid ester synthetic oil, such as hydraulic oil, lubricating oil, transformer oil, turbine oil (turbine oil), gear oil, engine oil and other oil. Currently widely used in aerospace, electric power, petroleum, chemical, transportation, port, metallurgy, machinery, automobile manufacturing and other fields. Features 1. High sensibility. Able to detect the particle as small as 1μm. 2. Multiple standards available. NAS 1638, ISO4406, GB, GJB. 3. Efficient. Displayed data is to be updated every 45 sec. 4. Durable. 24 hours continuous real-time monitoring of oil.status.Maintenance-free. 5. Very small flow rate required. When working online, as little as 50 ml flow rate is adequate. Little influence on hydraulic or lubricant circuit. 6. Optical fiber attached. Data can be transferred to a PC if needed. 7. Able to diplay oil moisture in either RH or PPM (Selective by the operator) Technical parameter Light source: semiconductor laser Channel number: 6 Particle size: 2 µ m, 5 µ m, 15 µ m, 25 µ m, 50 µ m, 100 µ m or 4 µ m (c), 6 µ m (c), 14 µ m (c), 21 µ m (c), 38 µ m (c), 70 µ m (c) Testing standards: ISO 4406, NAS 1638, 420B-2006 GJB (can be customized for other standards) Work flow: 50mL/min~300 mL/min Working power supply: 10V~26V DC (power ripple <100mVp-p) Repeatability accuracy: ±0.5 ISO level Maximum pressure value: 1Mpa Ambient temperature: -20～ 60℃ Oil temperature: -10～ 80℃ Storage temperature: -40～ 85℃ Humidity: relative humidity 20% ~ 85%, no condensation; storage humidity 98% Moisture measurement range: relative humidity of 0 ~ 100%RH Temperature -20 ~ 80℃ Moisture resolution: relative humidity of 0.1%RH Temperature 0.1℃ Water module measurement accuracy: relative humidity≤ ± 3%@(0 ～ 80% RH)(0℃～ 60℃)% FS Temperature ±1 ℃FS
