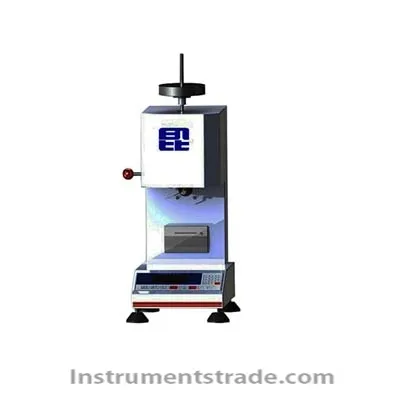

Introduction: Plastic melt index instrument for the lower melt viscosity of the thermoplastic quality control, determination of the method is in the specified temperature, load, and the piston in the cylinder position and other conditions, the plastic melt index meter measured by time measurement of molten plastic extrusion A certain length and diameter of the mold speed of the hole to determine the uniformity of polymer flow rate during the process. Plastic Melt Indexer complies with ASTM, ISO, JIS, CNS standard A method for the determination of mass method, while the new method B volumetric method for the determination of the standard, can choose to cut or cut the material automatically. MFI mass method MFV applies to The flow rate is between 0.01 and 200 g / 10 min. Volumetric MVR applies to materials with flow rates between 0 and 1000 g / 10 min. Technical Parameters: Temperature control: room temperature ~ 400 ℃, PID control, accuracy ± 0.1 ℃ (including over-temperature protection) Weight: 325g, 875g, 1200g, 2160g, 3800g, 5000g, 10000,21600g, etc. A total of eight full set of weights Automatic cutting device: automatic cutting material, manual cutting material can be selected, set the time 0.1 ~ 999.9min arbitrary setting Plastic Melt Indexer Cylinder: ¢ 9.5504 ± 0.0076mm Piston: ¢ 9.4742 ± 0.0076mm Pore Mold: Outer Diameter 9.5 ± 0.02mm Diameter 2.0955 ± 0.0051mm, Length 8.00 ± 0.02mm Plastic Melt Indexer Volume: 40 × 51 × 60cm Weight: 42kg (without weight) Power: AC220V, 5A
Introduction: Plastic melt index instrument for the lower melt viscosity of the thermoplastic quality control, determination of the method is in the specified temperature, load, and the piston in the cylinder position and other conditions, the plastic melt index meter measured by time measurement of molten plastic extrusion A certain length and diameter of the mold speed of the hole to determine the uniformity of polymer flow rate during the process. Plastic Melt Indexer complies with ASTM, ISO, JIS, CNS standard A method for the determination of mass method, while the new method B volumetric method for the determination of the standard, can choose to cut or cut the material automatically. MFI mass method MFV applies to The flow rate is between 0.01 and 200 g / 10 min. Volumetric MVR applies to materials with flow rates between 0 and 1000 g / 10 min.
