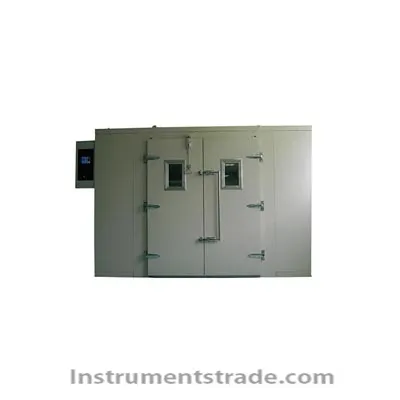

KB-TH-S-4000 high temperature laboratory

Product ID:WHgw004

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberKB-TH-S-4000
    Brand NameYM
    Payment TermsT/T, paypal
    Brief introduction:
    Suitable for the machine or large parts of low temperature, high temperature, high and low temperature at constant change, heat, high and low temperature alternating humid heat test and so on. According to user requirements change studio size and function, etc.; Block type box body, modelling is beautiful and easy; Science of duct design, which can meet the needs of different customers; The touch screen, PLC program controller.
    Features:
    1. A and wide range of temperature and humidity control, can meet the various needs of users. The unique way of balance, temperature humidity, can have a safe, accurate temperature and humidity environment. Has a stable, balance, heating, humidifying performance, high precision, high stability of the temperature and humidity can be controlled.
    2. Assembly precision intelligent temperature controller, temperature and humidity control liquid crystal display 7751 can be used program instrumentation (also can according to customer demand change Japan OYO LCD 5461 program instrumentation).
    3. The temperature and humidity recorder is optional.
    4. According to the requirements of the function, the computer remote control is optional.
    5. Refrigeration loop automatic selection, automatic controlling device has a temperature set point selection operation performance of the refrigeration loop, achieve directly start the chiller under high temperature, direct cooling.
    6. The inner is equipped with large viewing window, convenient observation experiment test condition.
    7. Installed with advanced security protection device, residual current circuit breaker, overtemperature protection, lack of phase protector and water protector.
    Technical parameters:
    Studio standard volume: 0.5, 1.0, 2,... 25,30,40 cubic meters
    Temperature: + 85 ℃
    Temperature limit: 60 ℃
    Temperature deviation: plus or minus 2 ℃
    Temperature fluctuation degree, plus or minus 0.5 ℃
    Humidity range: 30-98% r.h.
    Humidity error: 2 + / - 3% r.h.
    The heating time: an average of 3 ℃ / min
    The cooling time: an average of 1 ℃ / min
    Cooling: cooling
    Controller: Chinese LCD touch screen temperature controller, PID control algorithm
    The user program capacity: 120 groups of 120 segments (120 group, 120 sections)
    Safety protection measures: upper limit of temperature control, compressor overpressure, compressor overload, short circuit of the heater
    Power: 380 v, 50 hz, three-phase five line
