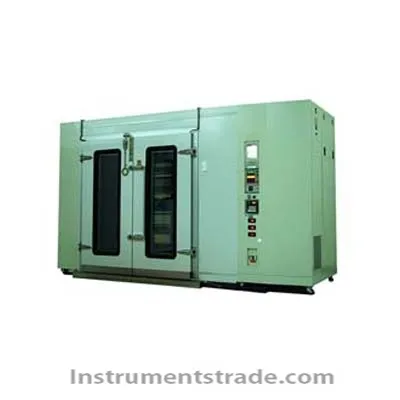

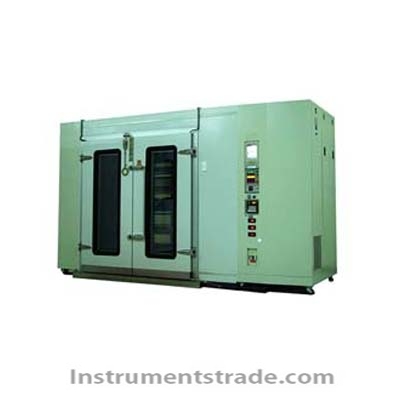

EWR–10S-A high-temperature aging room

Product ID:WHgw003

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberEWR–10S-A
    Brand NameYM
    Payment TermsT/T, paypal
    Brief introduction:
    High temperature aging Room, is also called the burning Room, Burn - In Room, is one of the commonly used In all kinds of aging test equipment, widely used In electronics, IT, war industry, automobile, communication, etc. Aging room are usually made of palisade structure, air duct system, control system, indoor test architecture, etc. Insulation board commonly used high temperature aging room room structure (double-sided color steel plate, the middle with insulation materials) assembly at the scene, the room size are designed according to customer's requirement. The room looks beautiful, firm structure, quick and easy installation, short construction period. On room wall, can be set according to need observation window, convenient in outdoor observed indoor product testing. Also equipped with a different voltage socket on the wall, in order to meet the needs of product aging test.
    Features:
    1. Accurate temperature control, high precision. Due to the unique air duct system design and electric control system, can maintain a high uniformity of the room temperature, much higher than similar products.
    2. Room set temperature range, continuously adjustable. (if the customer special request, can design a higher temperature products).
    3. The multipoint temperature scroll in the room, supervisory accurate and clear (optional).
    4. The system to protect the function is all ready, to ensure safe and stable long-term trouble-free operation.
    5. Beautiful appearance, convenient construction, short construction period.
    Technical indicators:
    Equipment models: EWR - 10 s - A
    Job dimensions: 2000 x2000x2500
    Temperature range: RT ~ 55 ℃, 65 ℃, 75 ℃, 65 ℃, 100 ℃, 120 ℃ can choose
    Insulation thickness: 50 mm; 75 mm; 100 mm; 150 mm
    Analytical precision: 0.1 ℃ or 0.01 ℃
    Accuracy: ≦ + / - 1 ℃
    Temperature deviation: ≦ plus or minus 2 ℃
    Volatility: ≦ plus or minus 2 ℃
    Heating time: an average of 1 ~ 5 ℃ / min
    Cooling time: 10 to 60 minutes
    Series: noise ≦ 65 decibels
    Control system: programmable: LCD color LCD controller or standard: LED display controller
    Heating system: special high-speed electric heater
    Circulation system: special low noise, much wind vane circulation system
    Safety device: power leakage protection, load protection, overtemperature protection, fan overheating protection, sound and light alarm, and so on
    Accessories: glass observation window, test hole, smoke alarm, indoor illumination, temperature recorder (optional)
    System power supply: AC 380 V (+ / - 10%), 50 HZ + / - 0.5 HZ, three phase four wire + ground protection



  • Brief introduction:
    High temperature aging Room, is also called the burning Room, Burn - In Room, is one of the commonly used In all kinds of aging test equipment, widely used In electronics, IT, war industry, automobile, communication, etc. Aging room are usually made of palisade structure, air duct system, control system, indoor test architecture, etc.
