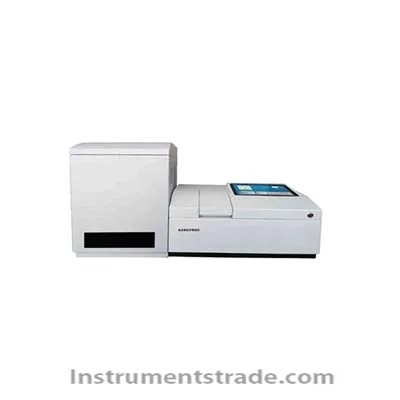

IRO-300 automatic infrared spectrophotometer Introduction
IRO-300 automatic infrared spectrophotometer consists of fully automatic operation software, infrared spectroscopic system and magnetic stirring extraction system. Using extraction solvent according to a certain extraction ratio, the oil in the water body is extracted by the drum type stereo stirring technology. The extraction solution is then passed through a filtering device to remove impurities and introduced into the cuvette, and then analyzed and measured by a post-infrared spectroscopic system. A special magnesium silicate filter unit can be added to measure the content of petroleum and animal and vegetable oils. After the measurement is completed, the instrument automatically drains the cleaning pipeline. The whole process is automated, namely automatic injection, automatic extraction, automatic water removal and impurity removal, automatic measurement, automatic cleaning, automatic drainage and storage of data. Features
1.Fully automated: fully automatic injection, extraction, water filtration, measurement, drainage, cleaning, continuous 8-10 water samples;
2.Health and safety: Extraction and other operations do not require the participation of analysts to ensure the health and safety of operators;
The extraction method of ◇ is in line with the national standard HJ637-2018, and the extraction results are consistent with the results of the national standard method.
3.has core technology: equipped with imported oil-water separation membrane filtration, instead of anhydrous sodium sulfate to remove water, a membrane can be used about 100 times.
4.Using reagents such as tetrachloroethylene for fully automatic extraction detection, manufacturers provide standard solvent, technical support, etc.;
5.Built-in touch computer terminal, can also be connected to a desktop computer, with intelligent processing information, storage, print and save functions;
6.Using the most efficient drum stereo magnetic stirring extraction technology, the extraction efficiency is higher than 95%
7.Controlled by Windows 7 or Windows 10 operating system.
8.Use the most stable and mature .NET4.0 platform green free installation oil analyzer software;
9.Real three-wavenumber, infrared three-wavenumber spectrum is clear, the scale is accurate, and the absorption spectrum and absorbance generated by three wave numbers can be clearly displayed.
10.Built-in magnesium silicate adsorption column can measure mineral oil and animal and vegetable oils, and can be upgraded to online monitor with automatic sampler;
11.One-button calibration: blank and standard oil sample automatic detection automatic correction;
12.One-click completion: Adjusting the blank and adding multiple water samples can be done with one button, reducing the workload of the operator;
13.The whole extraction system adopts anti-acid and alkali-proof carbon tetrachloride, full anti-corrosion and non-oil-friendly materials, runs the cleaning process, and reduces high and low concentration cross-contamination;
14.Automatic dilution and enrichment: the dilution enrichment ratio can be set arbitrarily;
15.Automatically separate water and carbon tetrachloride waste liquid, and automatically collect waste water and other reagents such as carbon tetrachloride to discharge waste water;
16.Baseline stability: zero real-time real-time adjustment (eliminate baseline drift effects) Technical parameters
Measurement frequency: 7 times / min
Resolution: 0.1ppm
Detection limit: 0.02mg/L
Accuracy: 0.02mg/L
Measuring range: 0.05~120mg/l
Introduction
IRO-300 automatic infrared spectrophotometer consists of fully automatic operation software, infrared spectroscopic system and magnetic stirring extraction system. Using extraction solvent according to a certain extraction ratio, the oil in the water body is extracted by the drum type stereo stirring technology. The extraction solution is then passed through a filtering device to remove impurities and introduced into the cuvette, and then analyzed and measured by a post-infrared spectroscopic system. A special magnesium silicate filter unit can be added to measure the content of petroleum and animal and vegetable oils. After the measurement is completed, the instrument automatically drains the cleaning pipeline. The whole process is automated, namely automatic injection, automatic extraction, automatic water removal and impurity removal, automatic measurement, automatic cleaning, automatic drainage and storage of data.
