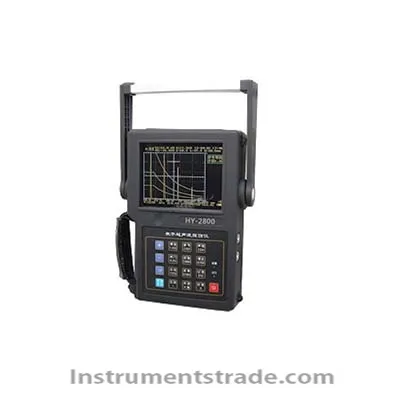

Introduction: HY-2800 all-digital intelligent ultrasonic flaw detector adopts international advanced digital integration and artificial intelligence technology, and is assembled with imported components. All indicators have reached or exceeded the international advanced level. Features: 1. Function introduction: All Chinese touch keyboard, good feel, intuitive and easy to remember, Chinese prompts and graphic display during operation, simple training can be mastered. 2. The performance of the instrument is automatically determined, which can test the K value of the probe and the sound speed of the material. 3. Built-in Chinese character input method, full Chinese operation prompts, you can get started without complicated technical training. 4. 90 independent flaw detection channels, which can store 90 sets of flaw detection parameters. 5. Built-in a variety of commonly used standards, such as GB11345, JB4730, ASM and other standards, and can also generate custom flaw detection processes according to actual workpieces (such as welds, forgings, castings, pipes, plates, axles, wheels, small pipe diameters, etc.), There is no need to carry test blocks for on-site flaw detection. 6. The DAC, AVG, and decibel DAC curves are automatically generated. The curve automatically floats with the gain and automatically expands with the sound path. 7. Defect echo (horizontal, vertical, distance, dB equivalent value, Ф value) is displayed in real time, and the weld profile is displayed. 8. Peak memory and envelope functions make it easier to find the highest waveform. 9. 10000 pieces of flaw detection data storage, can complete the printing of screen and stored data (support inkjet printing) or computer communication (support Windows), the waveform can be pasted to the user-defined form, the detection report is more practical. Using SD card storage technology, the memory can be expanded, and the post data processing of the PC can be directly carried out, without the cumbersome operation of various cables. 10. Adopt the international popular LED liquid crystal display, the color can be customized, with reverse white display, the display is still clear under strong light, and the anti-interference ability is strong. The display color can be customized by the user. 11. Low voltage sound alarm, automatic protection shutdown. 12. Using super-capacity lithium-ion battery (14.8V/4400mAH), automatic protection charging (16.8VDC, 220VAC), it can work continuously for more than 8 hours. Light weight (only 1.38Kg with battery), small size, easy to carry and use, and can be operated with one hand. Technical parameter: Gain Range: 110dB Bandwidth: 0.1~40MHz Sampling frequency: 150MHz Detection range: 0.3~10400.00mm Sensitivity margin: >63dB Resolution: >42dB Dynamic range: >36dB Horizontal linearity: <0.1% Vertical Linearity: <1% Noise level: <7%
