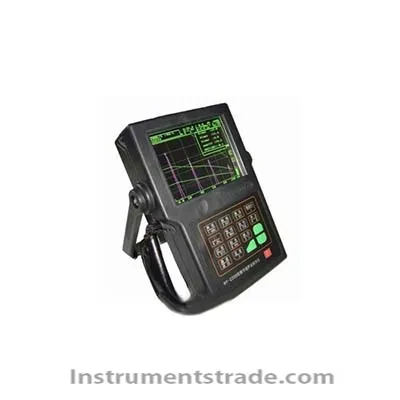

Introduction: HY-2200 digital ultrasonic flaw detector is integrated and artificial intelligence technology, all imported components are assembled, and the display device adopts the international new color high-speed high-brightness TFT liquid crystal display (no hood is required under the sun), and all performance indicators have reached or exceeded the international advanced level. . Features: 1. Function introduction: All Chinese touch keyboard, good feel, intuitive and easy to remember, Chinese prompts and graphic display during operation, simple training can be mastered. 2. The performance of the instrument is automatically determined, which can test the K value of the probe and the sound speed of the material. 3. Built-in Chinese character input method, can directly write flaw detection report. 4. Ten independent flaw detection channels can store ten sets of flaw detection parameters. 5. Built-in a variety of commonly used standards, such as GB11345, JB4730, ASM and other standards, and can also generate custom flaw detection processes according to actual workpieces (such as welds, forgings, castings, pipes, plates, axles, wheels, small pipe diameters, etc.), There is no need to carry test blocks for on-site flaw detection. 6. The DAC, AVG, and decibel DAC curves are automatically generated. The curve automatically floats with the gain and automatically expands with the sound path. 7. Defect echo (horizontal, vertical, distance, dB equivalent value) is displayed in real time, and the weld profile is displayed. 8. Peak memory and envelope functions make it easier to find the highest waveform. 9. 1000 pieces of flaw detection data storage, can complete the printing of screen and stored data (supports inkjet printing) or computer communication (supports Windows), the waveform can be pasted to the user-defined form, and the detection report is more practical. 10. Adopting the international popular TFT liquid crystal display, the display is still clear under strong light, and the anti-interference ability is strong. The display color can be customized by the user. 11. Low voltage sound alarm, automatic protection shutdown. technical parameter: Gain Range: 110dB Bandwidth: 0.4~20.0MHz Detection range: 0.3~6000.0mm Sensitivity margin: >62dB Resolution: >40dB Dynamic range: >36dB Horizontal linearity: <0.3% Vertical Linearity: <3% Noise level: <8%
Introduction: HY-2200 digital ultrasonic flaw detector is integrated and artificial intelligence technology, all imported components are assembled, and the display device adopts the international new color high-speed high-brightness TFT liquid crystal display (no hood is required under the sun), and all performance indicators have reached or exceeded the international advanced level.
