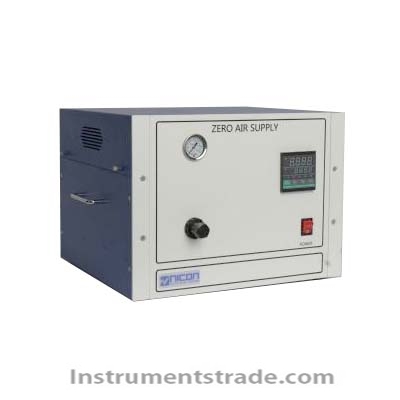

GDS-ZERO zero air generator Introduction: The GDS-ZERO zero level air generator is a key equipment in the air distribution system and automatic air monitoring system. It consists of two main parts: a zero gas generator and an external air compressor system. The GDS-ZERO zero level air generator includes a pressure regulating device, a gas cleaner, a reaction chamber, and a temperature controller. The compressor system compresses the air and inputs it into the zero gas generator, which produces zero gas free of the measured pollutants such as SO2, CO, O3, NO, NO2, and HC. A zero gas generator can provide sufficient and stable zero gas for various devices. characteristic: 1. Adopting a multi-stage filtering method 2. Increased the amount of filter material in the filter, improving the filtration effect and lifespan 3. Install a molecular membrane dehumidifier in the zero gas generator Technical parameters: Main parameters: Parameter description Gas source: using air as the gas source Gas flow rate: 10 L/min (20L/min optional) Gas pressure: 3barg Conversion furnace heating temperature: 350 ℃ Pollutant concentration: Sulfur dioxide (SO2)<0.5 ppb Nitric oxide (NO)<0.5ppb Nitrogen dioxide (N2O)<0.5 ppb Ozone (O3)<0.5 ppb Carbon monoxide (CO)<20 ppb Hydrocarbons (HC)<5 ppb Operating temperature: -10~45 ℃ Working power supply: 220VAC@50Hz External dimensions: 440（W）x 220(H）x 420(D) mm
Introduction: The GDS-ZERO zero level air generator is a key equipment in the air distribution system and automatic air monitoring system. It consists of two main parts: a zero gas generator and an external air compressor system. The GDS-ZERO zero level air generator includes a pressure regulating device, a gas cleaner, a reaction chamber, and a temperature controller. The compressor system compresses the air and inputs it into the zero gas generator, which produces zero gas free of the measured pollutants such as SO2, CO, O3, NO, NO2, and HC. A zero gas generator can provide sufficient and stable zero gas for various devices.
