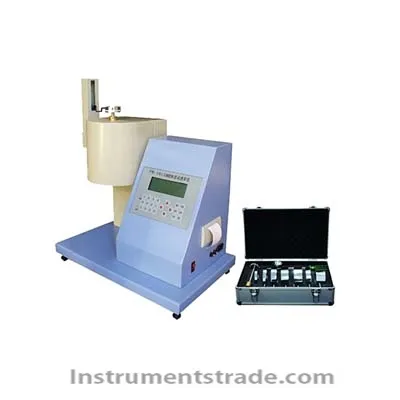

Introduction: Melt flow rate meter is designed according to GB / T3682-2000, ASTM D1238-98 standard and see JB / T5456, ISO1133 and other similar standards designed and manufactured for the determination of the melt flow rate of the thermoplastic melt (MFR; unit: g / 10min) and melt volume flow rate (MVR; unit cm3 / 10min), the mass flow rate of the melt was measured by means of automatic sampling and balance weighing; then the volume flow rate was calculated according to the formula. The final result of the measurement is displayed on the LCD screen of the instrument and output by the micro-printer. The instrument has the advantages of accurate measurement data, simple and intuitive operation, stable and reliable performance, suitable for engineering plastics such as fluoroplastic and nylon, but also for polyethylene (PE), polypropylene (PP), polyoxymethylene (POM) Ethylene (PS) ABS resin, polycarbonate and other low melting temperature plastic determination. Widely used in plastic production, plastic products, petrochemical and other industries and the relevant tertiary institutions, research institutes, commodity inspection departments. Technical Parameters: 1, squeeze out the part: Outlet diameter: Φ2.095 ± 0.005 mm The discharge port length: 8.000 ± 0.025 mm Loading cylinder diameter: Φ9.550 ± 0.025 mm Loading cylinder length: 152 ± 0.1 mm Piston rod head diameter: 9.475 ± 0.015 mm Piston head length: 6.350 ± 0.100 mm Temperature range: room temperature - 400 ℃ 2, the standard test load (kg a total of eight) Level 1: 0.325kg = (Piston rod + weight tray + heat shield +1 weight body) = 3.187N Level 2: 1.200 kg = (0.325 + 2 0.875 weight) = 11.77 N. Level 3: 2.160 kg = (0.325 + 3, 1.835 weight) = 21.18 N. Level 4: 3.800 kg = (0.325 + 4 3.475 weight) = 37.26 N. Level 5: 5.000 kg = (0.325 + 5 No. 4.675 weight) = 49.03 N. Level 6: 10.000 kg = (0.325 + 5 No. 4.675 weight + 6 No. 5.000 weight) = 98.07 N Level 7: 12.500 kg = (0.325 + 5 No. 4.675 weight + 6 No. 5.000 + 7 No. 2.500 weight) = 122.58 N Level 8: 21.600 kg = (0.325 + 2 0.875 Weight +3 1.835 + 4 3.475 + 5 4.675 + 6 5.000 + 7 2.500 + 8 2.915 weight) = 211.82 N. 3, Display: LCD display 4, print the test report: support 5, test methods: melt mass flow rate (MFR; unit: g / 10min) and melt volume flow rate (MVR; unit cm3 / 10min) 6, the temperature range: room temperature --- 400 ℃. 7, constant temperature accuracy: ± 0.2 ℃ 8, resolution: 0.1 ℃ 9, cut material way: automatic, manual two cut material way 10, the power supply voltage: 220V ± 10% 50Hz 11, the working environment conditions: the ambient temperature is 10 ℃ -40 ℃; relative humidity of 30% -80%; no corrosive media around, on a solid foundation installed correctly and transferred to the level. No strong air convection; No vibration around, no strong magnetic field interference. 12, the instrument dimensions about: 510 × 520 × 650 13, Weight (kg): Host 25kg weight 21.6kg
Introduction: Melt flow rate meter is designed according to GB / T3682-2000, ASTM D1238-98 standard and see JB / T5456, ISO1133 and other similar standards designed and manufactured for the determination of the melt flow rate of the thermoplastic melt (MFR; unit: g / 10min) and melt volume flow rate (MVR; unit cm3 / 10min), the mass flow rate of the melt was measured by means of automatic sampling and balance weighing; then the volume flow rate was calculated according to the formula. The final result of the measurement is displayed on the LCD screen of the instrument and output by the micro-printer. The instrument has the advantages of accurate measurement data, simple and intu operation, stable and reliable performance, suitable for engineering plastics such as fluoroplastic and nylon, but also for polyethylene (PE), polypropylene (PP), polyoxymethylene (POM) Ethylene (PS) ABS resin, polycarbonate and other low melting temperature plastic determination. Widely used in plastic production, plastic products, petrochemical and other industries and the relevant tertiary institutions, research institutes, commodity inspection departments.
