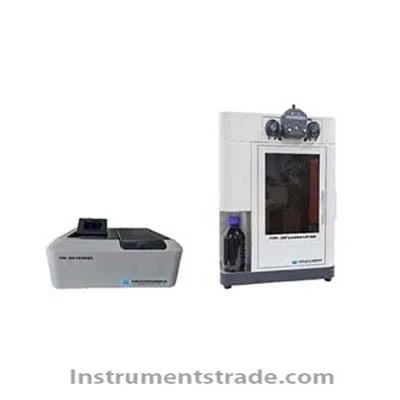

F2000-A880 UV Oil Analyzer Introduction
F2000-A880/880P automatic ultraviolet oil measuring instrument is a professional instrument for realizing automatic measurement of petroleum in water. The instrument is completely developed in accordance with the standard of the People's Republic of China, "HJ 970-2018 Water Quality and Determination of Ultraviolet Spectrophotometry". It has stable performance, high accuracy and fast detection speed. It is suitable for the determination of petroleum in surface water, groundwater and seawater. Features
High precision: The micro-scale precision screw drive grating is used to ensure the wavelength accuracy is <±0.5nm; the transmittance accuracy is ±0.3%.
High accuracy: The instrument is highly automated, reducing human error and improving measurement accuracy and repeatability.
Fully automatic operation: automatic completion of n-hexane test, extractant addition, liquid-liquid extraction, oil-water separation, animal and vegetable oil separation, petroleum measurement, pipeline cleaning, automatic reagent recovery and other processes.
Independent cleaning position: modular cleaning of inner wall, outer wall and full pipeline to avoid cross contamination.
The adsorption column is automatically switched: the magnesium silicate adsorption column is automatically switched every time one sample is detected to minimize cross-contamination.
Sample position: Freely set 1-N sample positions for non-continuous measurement.
Communication management: Wireless and wired coexistence, seamless connection with computers, mobile terminals and remote data platforms.
Safe and healthy: The exhaust gas is adsorbed by an activated carbon adsorption column to prevent workers from being exposed to n-hexane and can not be used in a fume hood.
Remote control: Can be run off-site, creating a new mode of detection.
The extractant is automatically separated from the water sample: the instrument can automatically save the extractant and water sample to different waste liquid bottles to reduce the amount of waste liquid treatment.
High extraction efficiency: gas and jet extraction methods, extraction efficiency is greater than 98%.
Fast analysis: The entire process takes only 5 minutes. Technical Parameters
Wavelength accuracy: ±0.5nm
Detection limit: 0.005mg/L
Repeatability: 2%
Accuracy: 2%
Minimum detectable concentration: 0.001mg/L
Absorbance range: 0.0-1.999
Extraction efficiency: >98%
Sample position: 7
Cleaning position: 1
Analysis time: 5min
Extraction ratio: (100~5): 1
Loading error (ml): 0.05ml
Correlation coefficient: 0.999>
Measuring range: 0-50mg/l
Baseline drift: 1%/4h
Automatic test reagent: Yes
Magnesium silicate replacement: manual
Dimensions (mm): Pre-processor: 530*450*722 Host: 580*380*210
Weight (kg): Preprocessor: 25 Host: 14
Power supply: 220V±20V, 50Hz±1Hz, 40W
Temperature: 20～30°C
Humidity: <80%
Maximum volume of water sample: 1000ml
Introduction
F2000-A880/880P automatic ultraviolet oil measuring instrument is a professional instrument for realizing automatic measurement of petroleum in water. The instrument is completely developed in accordance with the standard of the People's Republic of China, "HJ 970-2018 Water Quality and Determination of Ultraviolet Spectrophotometry". It has stable performance, high accuracy and fast detection speed. It is suitable for the determination of petroleum in surface water, groundwater and seawater.
