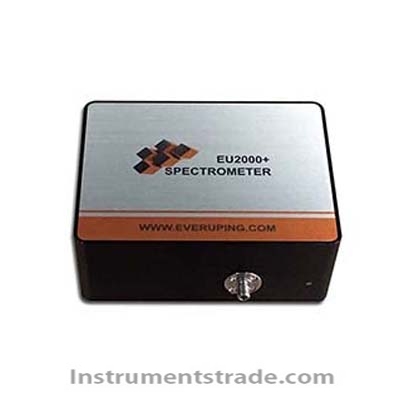

Introduction: EU2000 + fiber spectrometer with high-precision grating, imported high-sensitivity CCD sensor synchronous measurement, with the measurement speed, high precision testing advantages. Features: 1USB interface plug and play, no external power supply easy to use. 2 rigorous optical structure design to eliminate high-order diffraction spurious so that the long-wave test more accurate. 3 low noise, high dynamic range and other characteristics more suitable for different types of applications on different occasions. 4EU2000 + spectrometer matching a variety of optical platforms, optical fiber, light source, the use of optical probe and other test accessories, you can build a variety of test systems to measure the LED wavelength irradiance, film, glasses and other characteristics of transmittance reflectivity. 5 modular design, a wealth of sample code and a simple and reliable secondary development platform for users to integrate their own systems. Technical Parameters: Detector: Sony, ILX511, 2048 pixels Spectral range: 400 ~ 1000nm Spectral bandwidth: ~ 3nm Spectral measurement interval: 1nm Wavelength resolution: 0.35 nm (600 line grating, 100 μm slit) Signal to noise ratio: 500: 1 Stray light: <0.1% (600nm) Integration time: 3ms ~ 2000ms, 1ms interval Color coordinate accuracy: ± 0.0030 Color coordinate repeatability: ± 0.0003 AD resolution: 16bit Communication Interface: USB2.0 Slit width: 50 μm, 100 μm Optical interface: SMA905 Size: 120mm * 89mm * 47mm
Introduction
EU2000 + fiber optic spectrometer adopts high-precision grating and imported high-sensitivity CCD sensor for synchronous measurement, which has the advantages of fast measurement speed and high test accuracy. EU2000 + fiber spectrometer has the characteristics of low noise and high dynamic range, which is more suitable for different types of applications.
