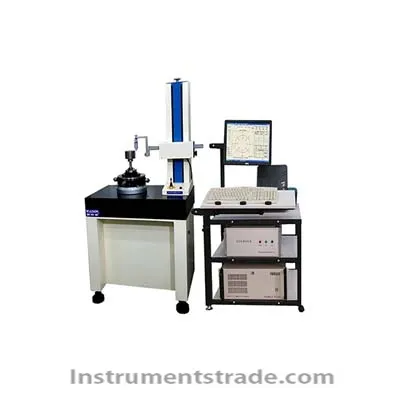

DTP – 3000A roundness instrument

Product ID:CLBMydy019

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberDTP – 3000A
    Brand NameGZWRXJMYQ
    Payment TermsT/T, paypal
    Instrument description:
    Measurement items
    Measurement items Roundness, coaxiality, concentricity, runout, perpendicularity, parallelism, planeness, surface waviness (Wc,Wp,Wv,Wt,Wa,Wq), spectrum analysis, wave height analysis, etc.
    Measuring range
    Maximum diameter φ400mm
    Maximum height 500mm
    Load weight 50Kg
    Spindle precision
    Spindle radial error H = height of table ±(0.025+5H/10000)μm
    Spindle axial error X = distance from spindle center ±(0.02+6X/10000)μm
    Staging
    Table diameter φ220mm
    Justification range Adjust eccentricity ±2mm; adjust level ±1 °
    Tactical diameter φ400mm
    Spin velocity 0-12 rpm / min
    Horizontal arm (transverse guideway)
    Horizontal moving distance 180mm
    Translational speed 0.5-6mm/S or manual
    Sensor
    Range 500μm (Radius difference)
    Resolution ratio 0.005μm
    Needle shape 2mm gemstone ball probe (more diameters optional)
    Dynamometry 1-12g
    Data collection
    Data collection 14400 points / week (international)
    Amplified factor
    Amplified factor 200000 times automatic
    Evaluation method
    Evaluation method LSC (least square), MZC (minimum region method), MIC (maximum tangent circle method), MCC (minimum circumscribed circle method)
    Filter value
    Filter value 1-5001-1501-501-153-163-1715-50017-100 upr
    Data analysis and processing
    Frequency analysis Analysis of amplitudes of different Frequency components
    Abnormal data elimination Manually or automatically remove abnormal data, such as burrs, holes and bumps, etc.
    File management Automatically save measurement data, can be deleted
    Data printing Single or multiple measurements can be printed in the same page mode
    Installation requirements
    Power supply 220-240V AC, 50HZ, single ground wire; maximum power consumption 450W
    Compressed air Pure compressed air: 0.4MPp, consumed 0.1m3 / min (0.25m3 / min supplied by gas source)
    Environmental requirements Working temperature: 10 °-30 °(normal temperature); humidity 20-80%RH (no dew), good ground line, no obvious vibration source


  • Measurement items:Roundness, coaxiality, concentricity, runout, perpendicularity, parallelism, planeness, surface waviness (Wc,Wp,Wv,Wt,Wa,Wq), spectrum analysis, wave height analysis, etc.
