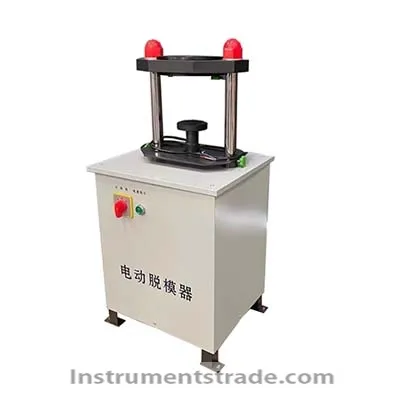

DTM-15 electric demoulder Introduction: The electric demoulder is suitable for demoulding circular test specimens of various soils and mixtures. The electric demoulder can especially meet the demoulding requirements of cement mixture strength specimens, with a maximum load of up to 150KN. This electric demoulder adopts a completely modular design, fully utilizing modern microelectronics technology to highly integrate various functional modules. The main control box not only completes its own automatic data acquisition, but also coordinates with other expansion boxes in the system to work automatically according to the set program Application of electric demoulder product: Technical parameters: 1. Compression test mold: ￠ 150 Х 230mm ￠ 100 Х 180mm ￠ 50 Х 130mm 2. Light and heavy geotechnical compaction test mold: ￠ 152 Х 170mm ￠ 100 Х 127mm 3 Marshall compaction test model: ￠ 101.6 Х 87mm Technical indicators: Rising speed of demoulder screw: 70mm/min Lowering speed of demoulder screw: 70mm/min Maximum moving distance of demoulder screw: 240mm Maximum upward limit distance of demoulder screw: (L) 270mm Minimum descent limit distance of demoulder screw: (L) 30mm Maximum demolding force of demoulder screw: 150KN
Introduction: The electric demoulder is suitable for demoulding circular test specimens of various soils and mixtures. The electric demoulder can especially meet the demoulding requirements of cement mixture strength specimens, with a maximum load of up to 150KN. This electric demoulder adopts a completely modular design, fully utilizing modern microelectronics technology to highly integrate various functional modules. The main control box not only completes its own automatic data acquisition, but also coordinates with other expansion boxes in the system to work automatically according to the set program
