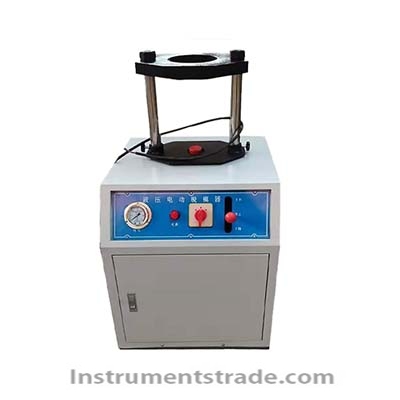

DT-15 electric hydraulic demoulder Introduction: The 20 ton electric hydraulic demoulder is suitable for demoulding circular test specimens of various soils and mixtures. The electric demoulder can especially meet the demoulding requirements of cement mixture strength specimens, with a maximum load of up to 200KN. This electric demoulder adopts a completely modular design, fully utilizing modern microelectronics technology to highly integrate various functional modules. The main control box not only completes its own automatic data acquisition, but also coordinates with other expansion boxes in the system to work automatically according to the set program The 20 ton electric hydraulic demoulder is suitable for: 1. Compression test mold: ￠ 150 Х 230mm ￠ 100 Х 180mm ￠ 50 Х 130mm 2. Light and heavy geotechnical compaction test mold: ￠ 152 Х 170mm ￠ 100 Х 127mm 3 Marshall compaction test model: ￠ 101.6 Х 87mm Technical Parameter： Maximum load: 200KN Range of force gauge: 0-38.2MPa Rising speed: stepless speed regulation (0-120mm/min) Maximum working pressure of oil: 38.2MPa Piston diameter: ￠ 100mm Piston stroke: 250mm Motor specification: AC380V 750W 1400r/min Net weight: approximately 200kg Dimensions: 540 Х 520 Х 1280mm (length Х width Х height) Maximum upward limit distance of demoulder screw: (L) 270mm Minimum descent limit distance of demoulder screw: (L) 30mm
