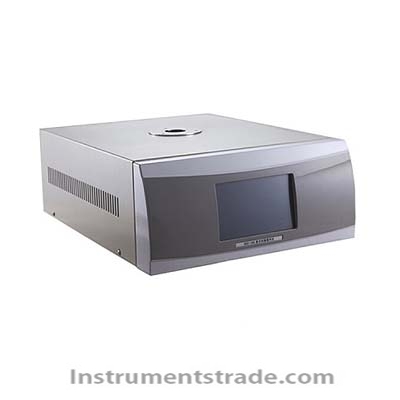

DSC - 100C differential scanning calorimeter for polymer performance testing

Product ID：WLcs003

Price: Please inquire PDF Format

Supply Ability:20 SETS/MON

Port:SHENZHEN

Product Introduction
Consulting

Model NumberDSC - 100C
Brand NameYIMA
Payment TermsT/T, paypal

Product introduction:
DSC is designed to determine the inner heat transition relating to temperature and heat flow, it is widely used in the field of polymer development, performance testing & quality control. DSC research and development includes the following field: glass transition
temperature, melting point, cold crystallization, crystallization, phase transition, oxidation
induction time (OIT).
Main Features:
1. New designed oven structure ensures high resolution and good stability of base line;
2. Air flow meter may control the air flow rate accurately; the test data can be recorded   into the database directly;
3. The instrument is bilateral control, may be controlled by both main frame and software. User-friendly interface, easy operation.
Technical parameters:
1.   DSC range: 0~±500mW
2.   Temperature range: -10℃~ 800℃  mechanical refrigeration
3.   Heating rate: 1 ~ 80 ℃ / min
4.   Temperature resolution: 0.1 ℃
5.   Temperature fluctuations:  ±0.1℃
6.   Temperature repeatability: ±0.1℃
7.   DSC noise: 0.01μW
8.   DSC resolution: 0.01μW
9.   DSC accuracy: 0.1μW
10. DSC sensitivity: 0.1μW
11. Control Mode: Rising temperature, constant temperature(full automatic programmed control)
12. Curve scanning: Rising scan, *cooling scan
13. Atmosphere control: Embedded digital flow meter & Software control
14. Display:24 bit color  7 inches  LCD touch screen display
15. Data interface: standard USB connector
16. Parameter standard: equipped with standard material, with a key calilbration function, the user may correct temperature and heat enthalpy
17. Note: * for selecting projects, all technical indicators can be adjusted according to
customers' demand
