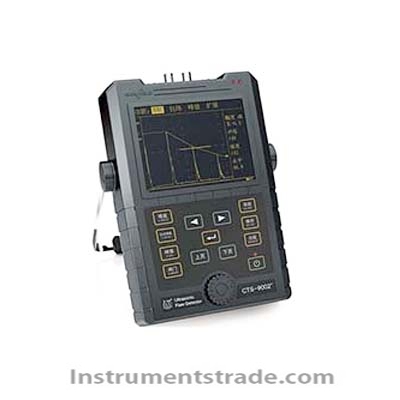

CTS-9002+ Digital Ultrasonic Flaw Detector

Product ID:WWcsts044

Price: Please inquire PDF Format
Supply Ability:70 SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberCTS-9002+
    Brand NameSHANTOUCHAOSHENG
    Payment TermsT/T, paypal
    CTS-9002+ Digital Ultrasonic Flaw Detector
    Introduction
    CTS-9002+ is equipped with the EL screen of wide temperature range and high refresh rate. It is developed with the prestigious square-wave drive technique. As stable in performance, light and portable in carriage, easy in operation, it is a device of high quality never too costly to possess. It is in accordance with EN12668-1:2010 standard and with TGS ROOO4-2009 requirement.
    CTS-9002+, with the EL screen (320×240) widely tolerant to temperature variants, can work normally under northern cold. Great capacity Li battery is attached to supply power that could sustain 6-8 hour' non-stop working. The device itself weighs only 1.5kg. Multi-angledly adjustable handle makes it possible to be used in field work. Square wave drive with adjustable voltage and pulse width, two shifts of damping, realizes perfect match between the device and the transducer employed, which promotes the detection sensitivity and resolving power.This product is developed to be an ideal detector to serve in petrochemistry, pressure vessel, electric power, railway transportation for mobile or airborne field work.
    Features
    Sophisticated circuitry with sampling frequency of 640MHz makes it possible to reflect and analyze the echo signals of the flaw rapidly and accurately to detail, which guarantees the real-timeness and actuality of the echo signals.
    Advanced square drive technique renders it wonderfully penetratable and signal-effective in high-attenuating materials or thick industrial works. Adjustable drive pulse width, drive voltage and damping collectively contribute to its high resolving power while detecting on thin works and composite materials.
    FIR digital filtering technique realizes its great signal-effectiveness; Frequency spectrum analysis function differentiatablizes transducers.
    The EL screen(320X240),which is widely tolerant to temperature variants and highly refleshable in display, enables the CTS-9002+ to work in severe cold.
    Long consecutive record and storage In accordance with EN12668-1:2000 and Item TSG R0004-2009 of New Pressure Vessel Stipulation.
    Automatic calibration on the field velocity, delay, K value of the transducer; convenient development and application of DAC and AVG figure.
    SD card port for mass storage; USB port for external connection with U disk, keyboard and mouse to realize IT communication, data exchange and paper-borne output.
    Ergonomics-optimized structure and appearance with muti-angledly adjustable handle. Weighing 1.5kg, including built-in battery and charger for easy operation and carriage.
    Technical parameters
    Transmission Pulse negative square wave; voltage adjustable from 25 to 250V in continuity
    Test Modes Single/Dual
    Damping 400、80Ω
    Working Frequency Working Frequency Wide-band and Narrow-band in shift. Wide:0.5~15MHz; Narrow:1.5~3MHz
    Gain Gain 0.0~110.0dB, steps:0.1/1.0/2.0/6.0dB; automatic speed-up step increment on Shift 0.1 Db
    Velocity Option 1000~1500m/s,adjustable in continuity; 30 pre-set nominated velocities for common materials
    Available Detection Range 0.0~10000mm(Steel Longitudinal wave),adjustable in continuity, min step 0.1mm
    Rectification positive, negative, full-play, RF
    Threshold and Alarm Two thresholds/gates with optional hardware drive real-time alarm conditions: progressive wave, regressive wave and DAC figure; acoustic or optical alarm signaling
    Measure mode: peak, front edge
    Display 5.7"EL screen with wide temperature tolerance, resolution of 320×240
    Pulse shift -7.5~3000μs
    Probe Zeroing 0~999.9μs
    Pulse Repetitive Frequency 25~800Hz, automatic adjustment
    Vertical Linearity Error ≤3%
    Horizontal Linearity Error ≤0.4%
    Surplus Sensitivity ≥60dB (200Φ2 flat bottom hole)
    Resolution ≥36dB(Probe Model: 5MHz 14mm Dia)
    Dynamic Range ≥32dB
    Reject (0~90)%;no detriment to the linearity and gain
    Noise level <10%(steel longitudinal wave,250mm)
    Port:transmission connector Q9(BNC)
    USB HOST
    Micro SD port
    Power Supply Li Battery with large capacity and of no memory effect, potent for 6~8 hours
    In-built charger (or outsource);AC power:220V
    Ultrasonic Standards compatible with EN12668-1
    in accordance with JB/T 10061-1999
    Weight around 1.50kg (in-built battery and charger)
    Dimension 246mm×166mm×47mm
