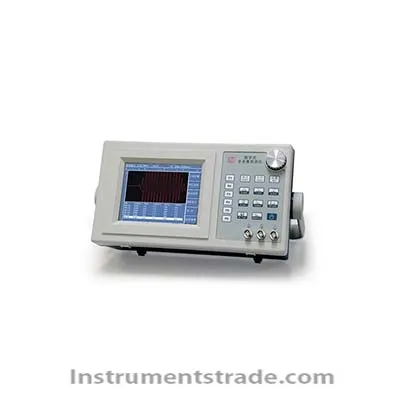

CTS-65 Digital Ultrasonic Non-metal Detector

Product ID:WWcsts049

Price: Please inquire PDF Format
Supply Ability:70 SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberCTS-65
    Brand NameSHANTOUCHAOSHENG
    Payment TermsT/T, paypal
    CTS-65 Digital Ultrasonic Non-metal Detector
    Introduction
    CTS-65 is a specialized non-metal ultrasonic detector. It is designed by up-to-day digital technique and signal-dealing solution as to replace the old type CTS-45. This device can be applied in concrete structures for measuring stakes, strength, defects, and the quality of refractory materials. Some physical properties of wood, plastics, rubber, graphite, carbon fiber, rocks can as well be tested.
    Features
    Availability for the mode " transmission by one and reception by two".
    Transmission module of super-high power.
    Real-time display of waves.
    Port for USB disk of large capacity.
    Sophisticated software for accurate and fast interpretation over parameters like time of flight, acoustic amplitude, etc. Signals and data of tested waves can be recorded and stored for replay in field.
    Continuous detection lest any misses or skips of detection so as to avoid misjudgment of flaws.
    Real-time workout of Depth-Velocity Curve and Depth-Amplitude Curve, offering clear results.
    Fine design of multi-functional knob by ergonomics, facilitating and accelerating operation.
    Switch between DC and AC mains. High power Lithium battery with the life longer than 6 hours.
    Probes and Elevator specific to stakes are available for the measurement of stakes.
    Multi-functional processing software fully supports Windows platform according to current detection specification. And the detection report can be created automatically.
    Technical parameters
    Bandwidth 10kHz~1MHz ,10~100kHz
    Gain 80dB, step of 1dB, error ranges between ± 1.5d within every 10dB
    Sampling Intervals 0.05μs,0.1μs,0.2μs,0.4μs,0.8μs,1.6μs,3.2μs,6.4μsOptional
    Time Interpretation Accuracy 0.1μs
    Time Interpretation Accuracy 0.1~199999.9μs
    Transmission Voltage 200、500、1000V
    Channels One for transmission, two for reception
    Reception Sensitivity ≤30μV(Signal-to-noise ratio: 3:1)
    Noise Level Less than 20% of the Screen’s height
    Interpretation Mode Automatic; manual with cursor
    Zeroing 1~10μs
    Delay for Scanning 0~4000μs
    Scanning Range 25~6400μs
    Pulse Repetition Frequency 25、50、100Hz three gears
    Penetration Distance No less than 10 meters using probe of 12.5kHz on #300 non-flaw concrete(connected to preamplifier)
    Display 6.5" TFT,Resolution 640x480
    Power Large-capacity Lithium battery without memory effect.Battery life: more than 6 hours without intervals.
    220V AC Mains (coupled with adapter)

  • Introduction
    CTS-65 is a specialized non-metal ultrasonic detector. It is designed by up-to-day digital technique and signal-dealing solution as to replace the old type CTS-45. This device can be applied in concrete structures for measuring stakes, strength, defects, and the quality of refractory materials. Some physical properties of wood, plastics, rubber, graphite, carbon fiber, rocks can as well be tested.
